Trouble Diagnosis: Schematic

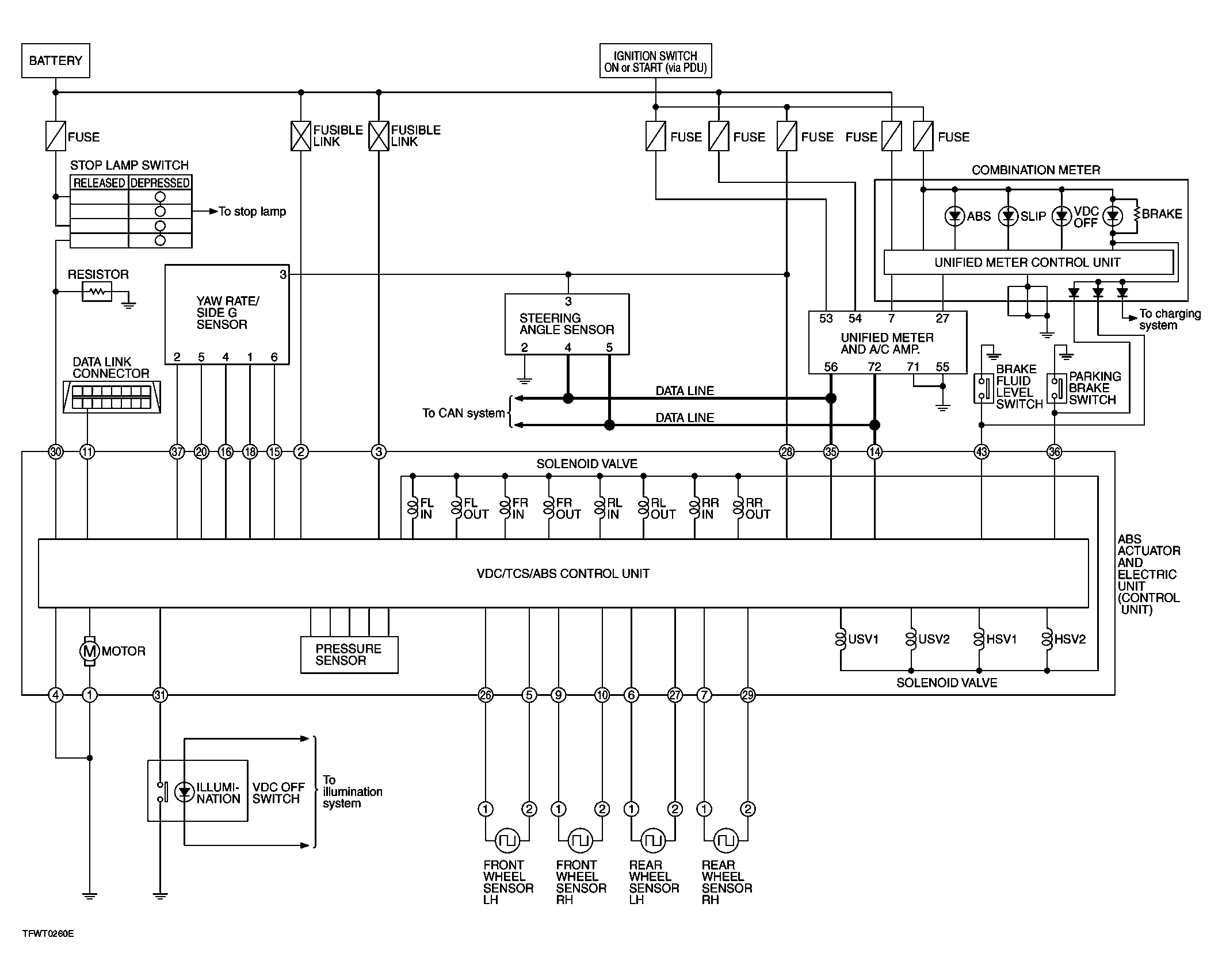

Fig 1: VDC/TCS/ABS Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
