Engine Control System - Introduction (Coupe)
>>
Engine Control System
>>
System Diagram (A/T models)
System Diagram (A/T models)

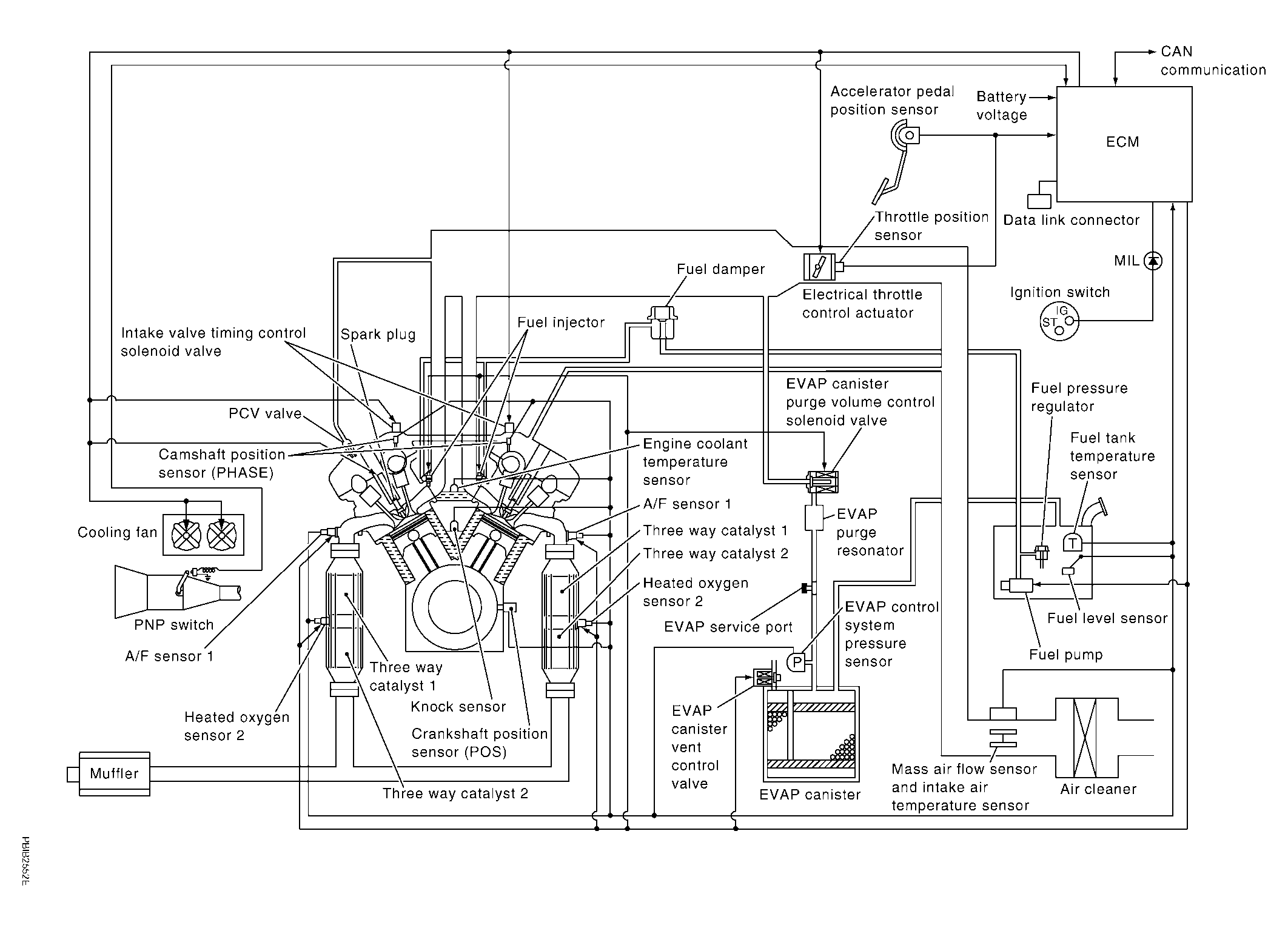

Fig 1: Engine Control System - System Diagram (A/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
