Rear View Monitor: Schematic

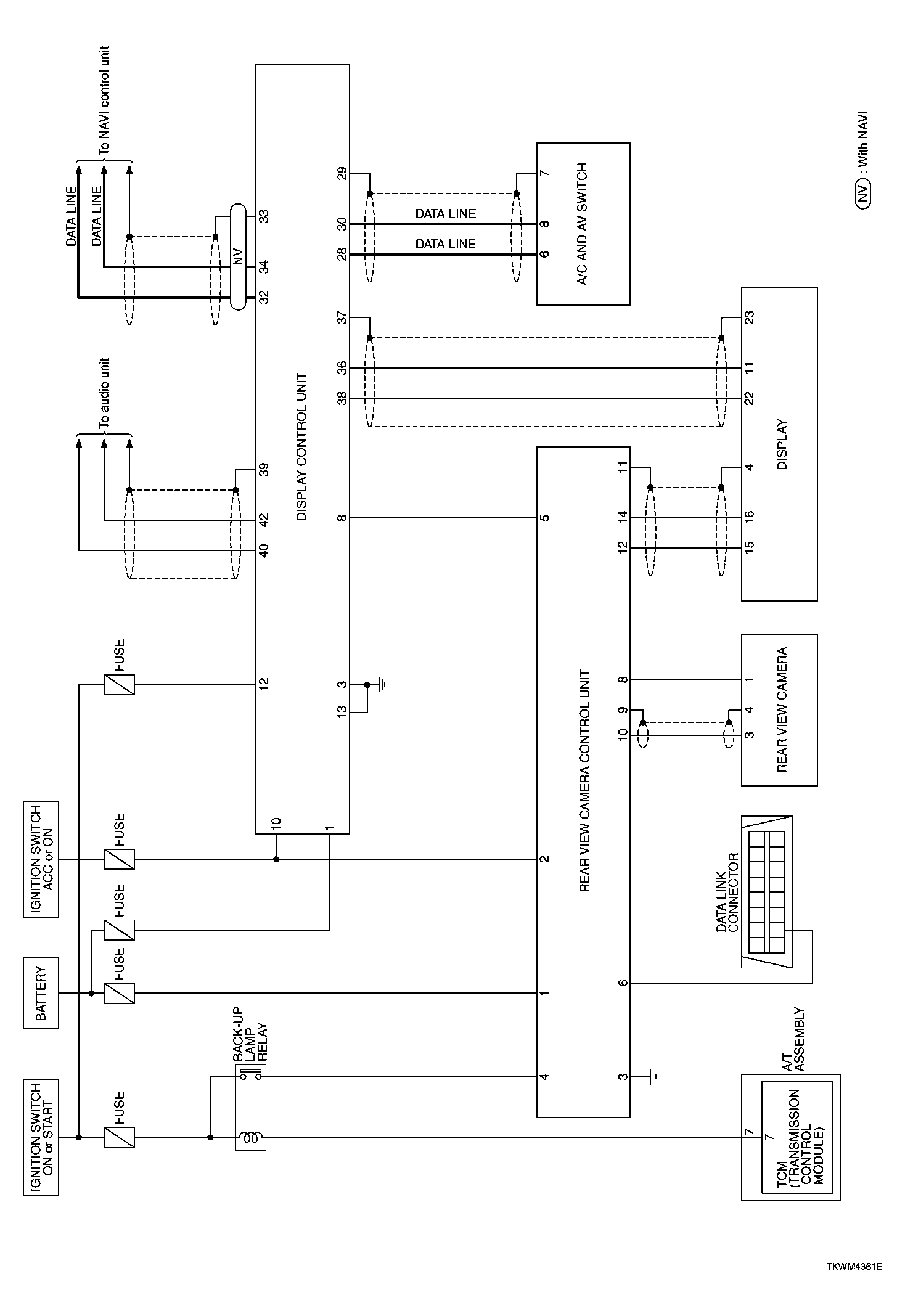

Fig 1: Rear View Monitor Schematic Diagram

G04078621

Courtesy of NISSAN MOTOR CO., U.S.A.
