Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
A/T Control System
>>
Input/Output Signal of TCM
Input/Output Signal of TCM

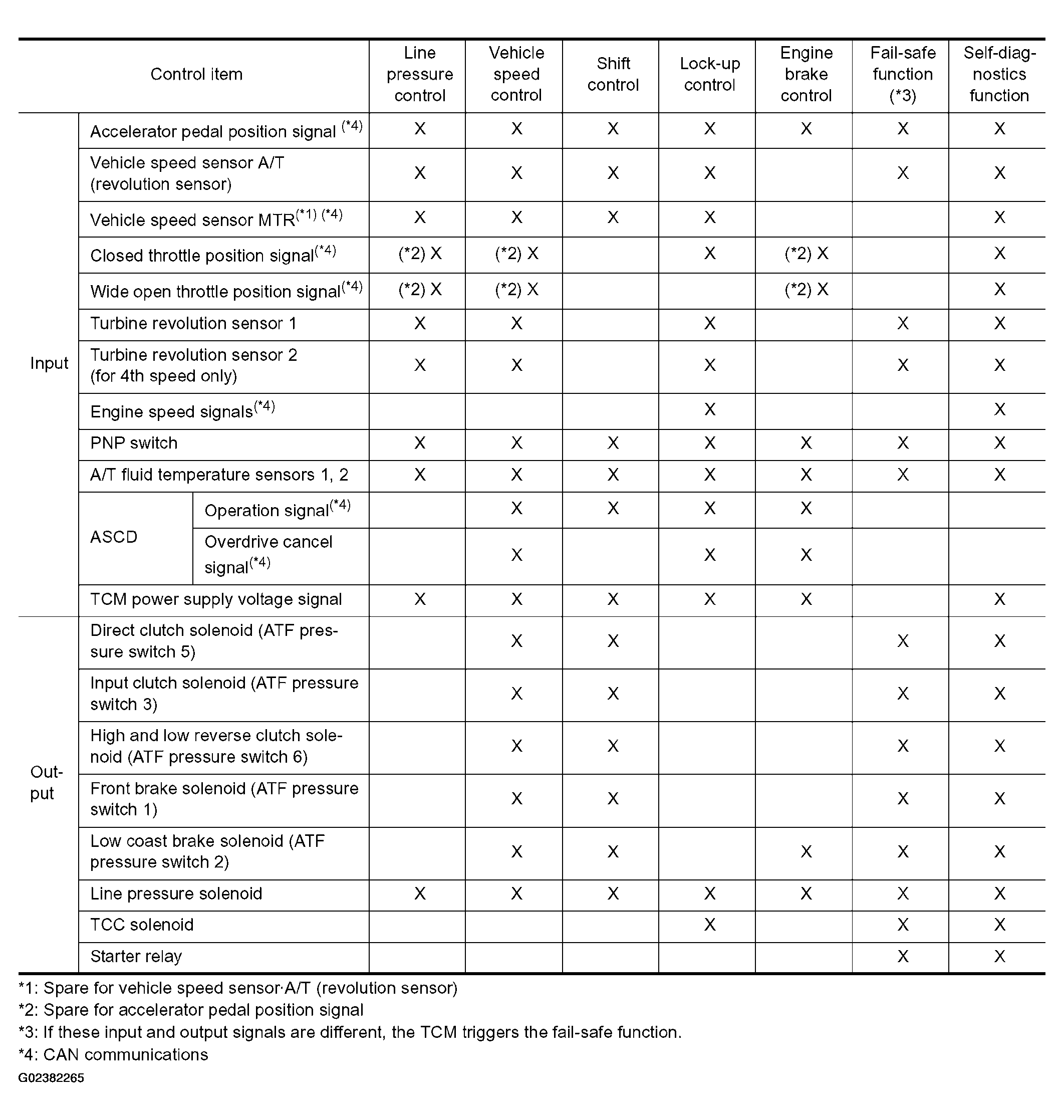

Fig 1: TCM Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
