Mil And Data Link Connector: Wiring Diagram

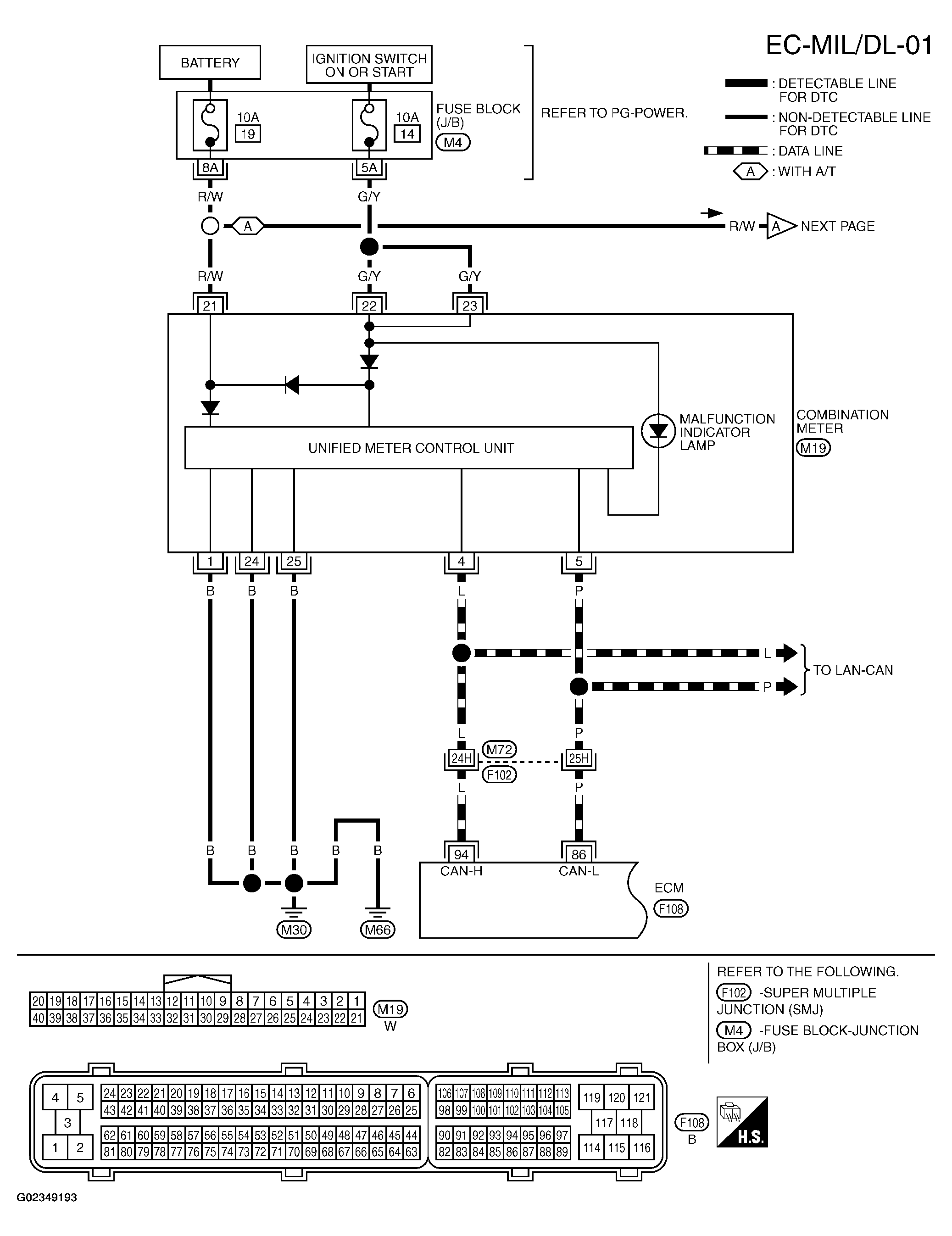

Fig 1: Wiring Diagram (1 of 2)

G02349193

Courtesy of NISSAN MOTOR CO., U.S.A.

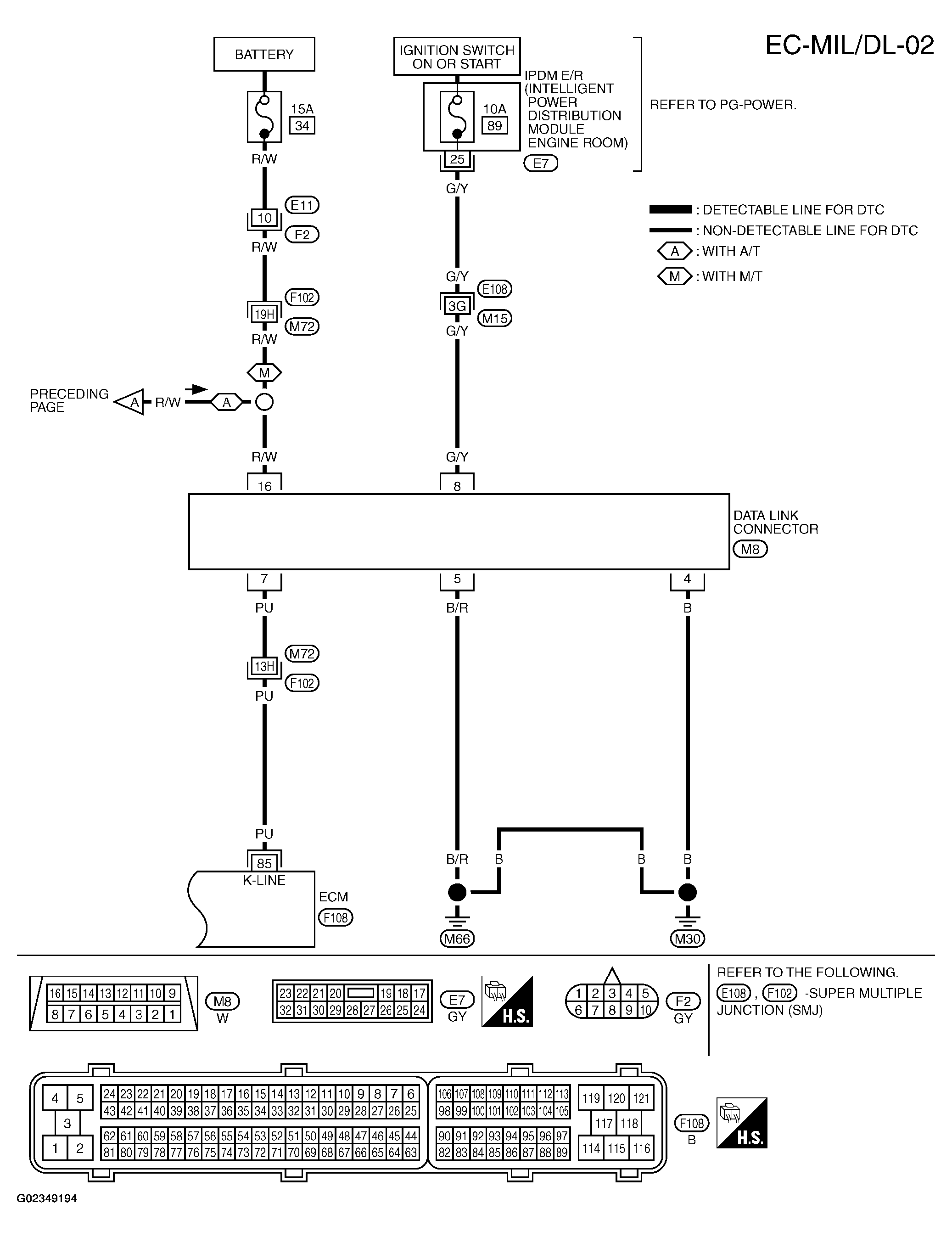

Fig 2: Wiring Diagram (2 of 2)

G02349194

Courtesy of NISSAN MOTOR CO., U.S.A.
