Snow Mode Switch

  1. Check continuity between snow mode switch terminals 1 and 4 under the following conditions.
    CONTINUITY SPECIFICATIONS

    CONDITION CONTINUITY
    Snow mode switch: ON Should exist
    Snow mode switch: OFF Should not exist
  2. If NG, replace snow mode switch.

    If OK, go to following step.

    Fig 1: Checking Continuity Between Snow Mode Switch Terminals
    G02358954Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check continuity between snow mode switch terminals 2 and 4 under the following conditions.
    CONTINUITY SPECIFICATIONS

    CONDITION CONTINUITY
    1 Should exist.
    2 Should not exist.
  4. If NG, replace snow mode switch.

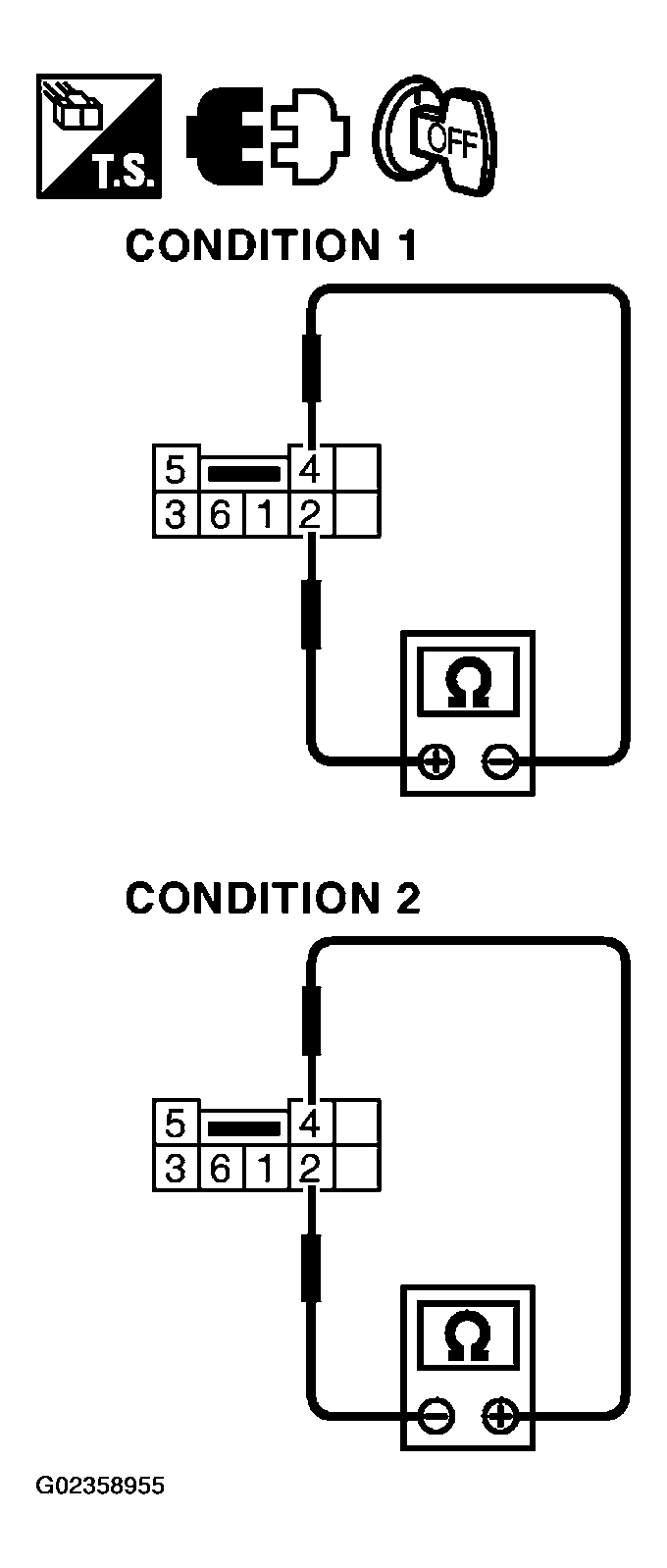

    Fig 2: Checking Continuity Between Snow Mode Switch Terminals
    G02358955Courtesy of NISSAN MOTOR CO., U.S.A.
