Engine Control System - VK45DE
>>
Trouble Diagnosis
>>
CONSULT-II Function (ENGINE)
>>
Work Support Mode
>>
Work Item
Work Item

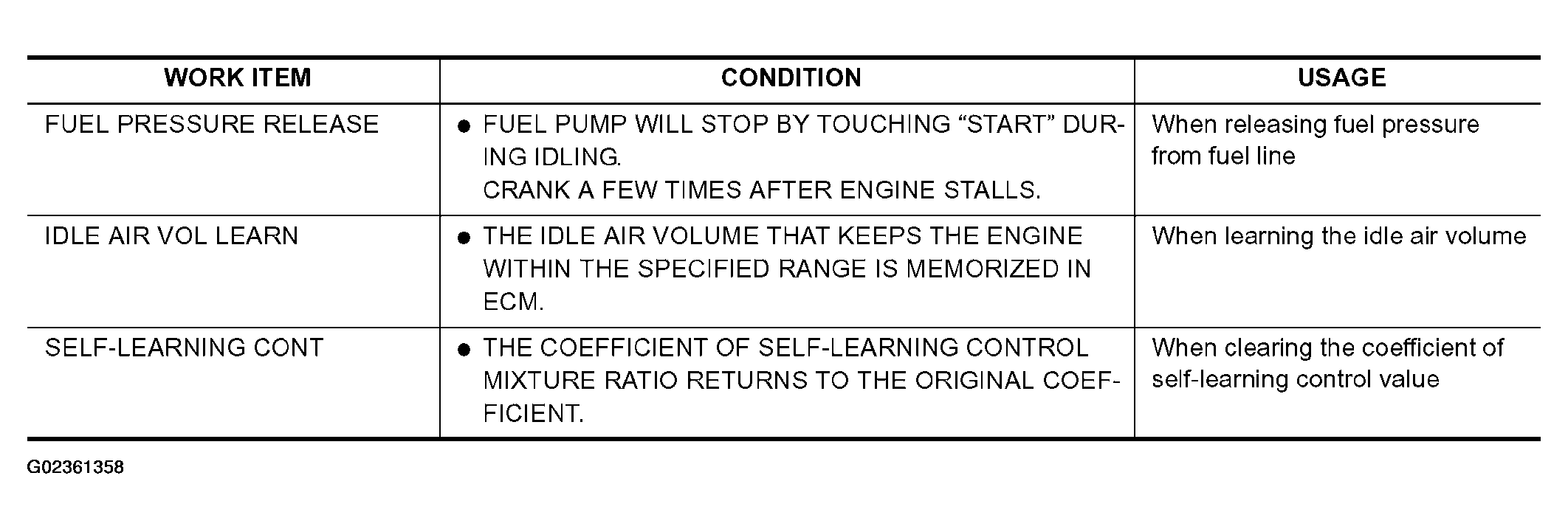

Fig 1: Work Support Mode Description Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

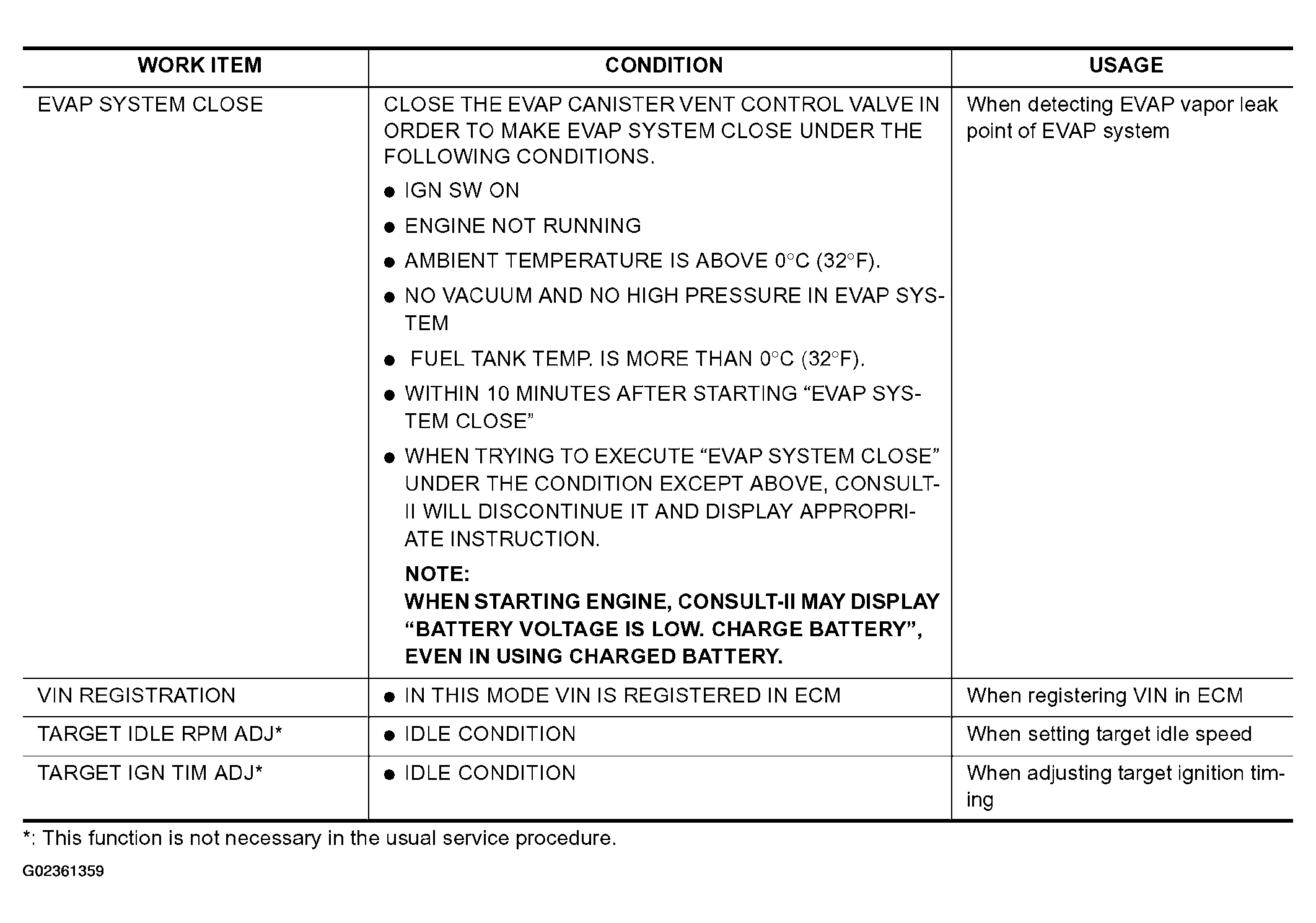

Fig 2: Work Support Mode Description Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
