Snow Mode Switch: Wiring Diagram

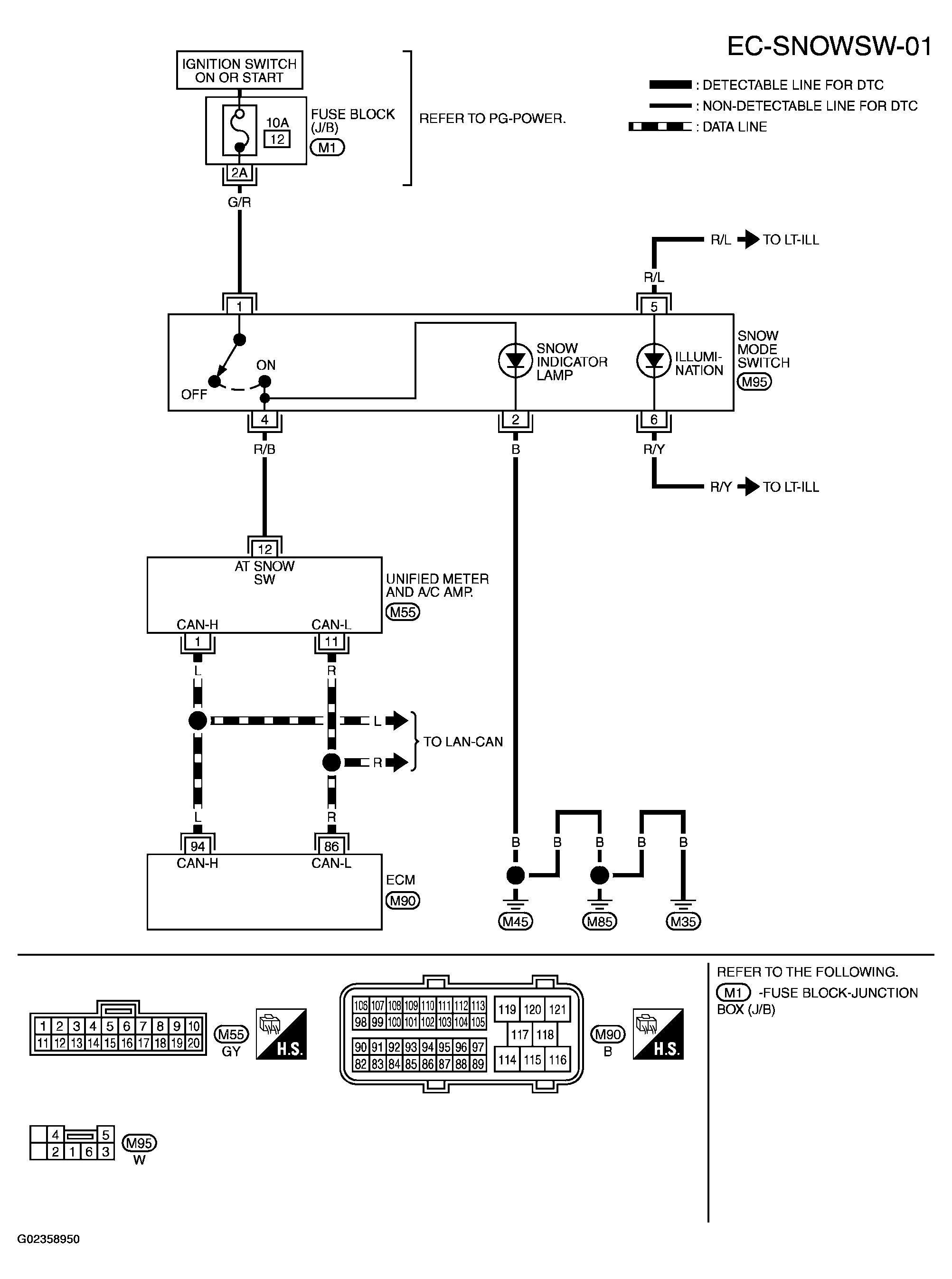

Fig 1: Wiring Diagram - EC-SNOWSW-01

G02358950

Courtesy of NISSAN MOTOR CO., U.S.A.
