Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Service Data And Specifications (SDS)
>>
Line Pressure
Line Pressure

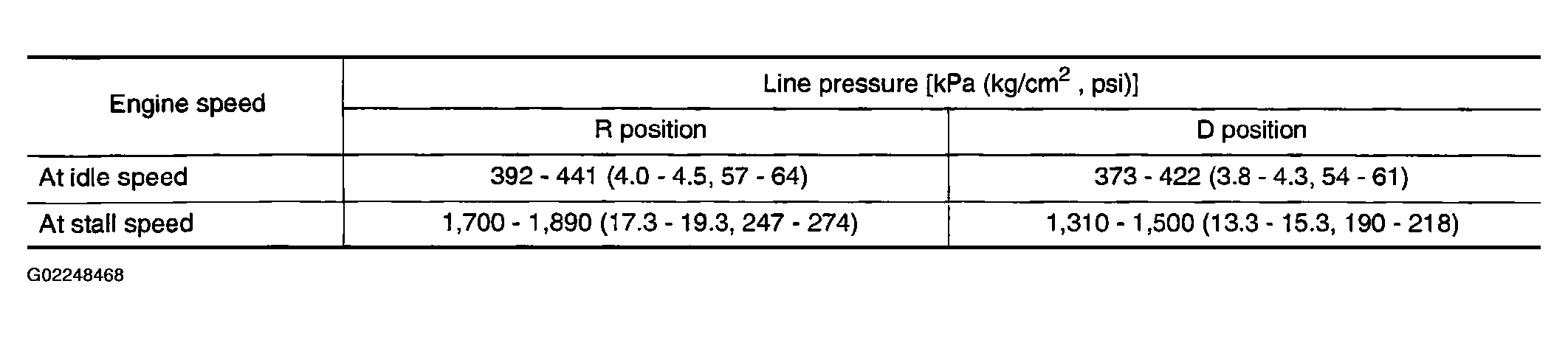

Fig 1: Line Pressure Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
