Home >> Infiniti >> 2004 >> QX56 AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Repair For Component Parts >> Direct Clutch >> Components

Direct Clutch: Components

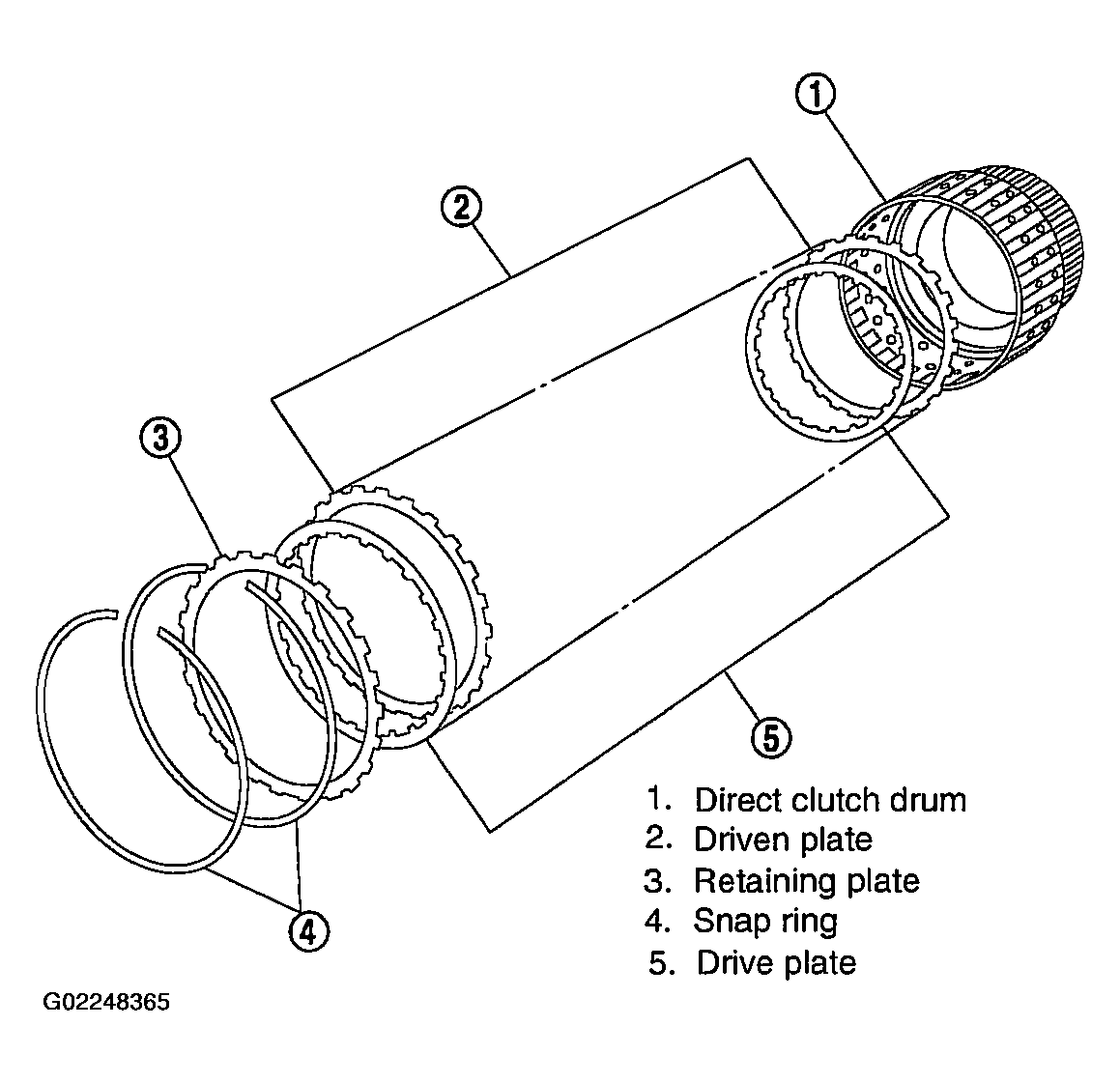

Fig 1: Exploded View Of Direct Clutch Components

G02248365

Courtesy of NISSAN MOTOR CO., U.S.A.
