Terminals And Reference Value Chart For BCM

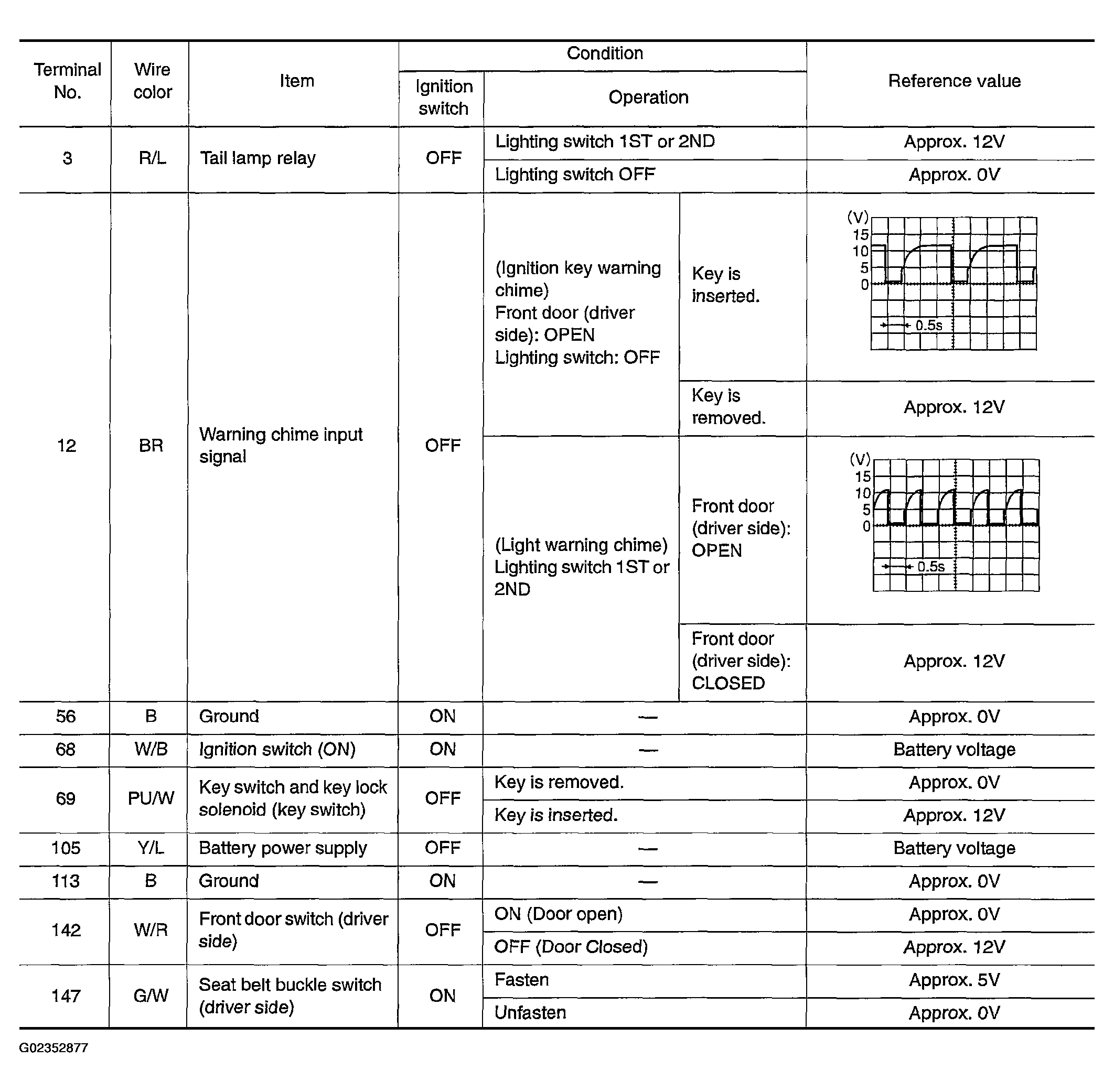

Fig 1: Terminals & Reference Value Chart For BCM

G02352877

Courtesy of NISSAN MOTOR CO., U.S.A.
