Vehicle Information And Integrated Switch System/Without Navigation System: Schematic

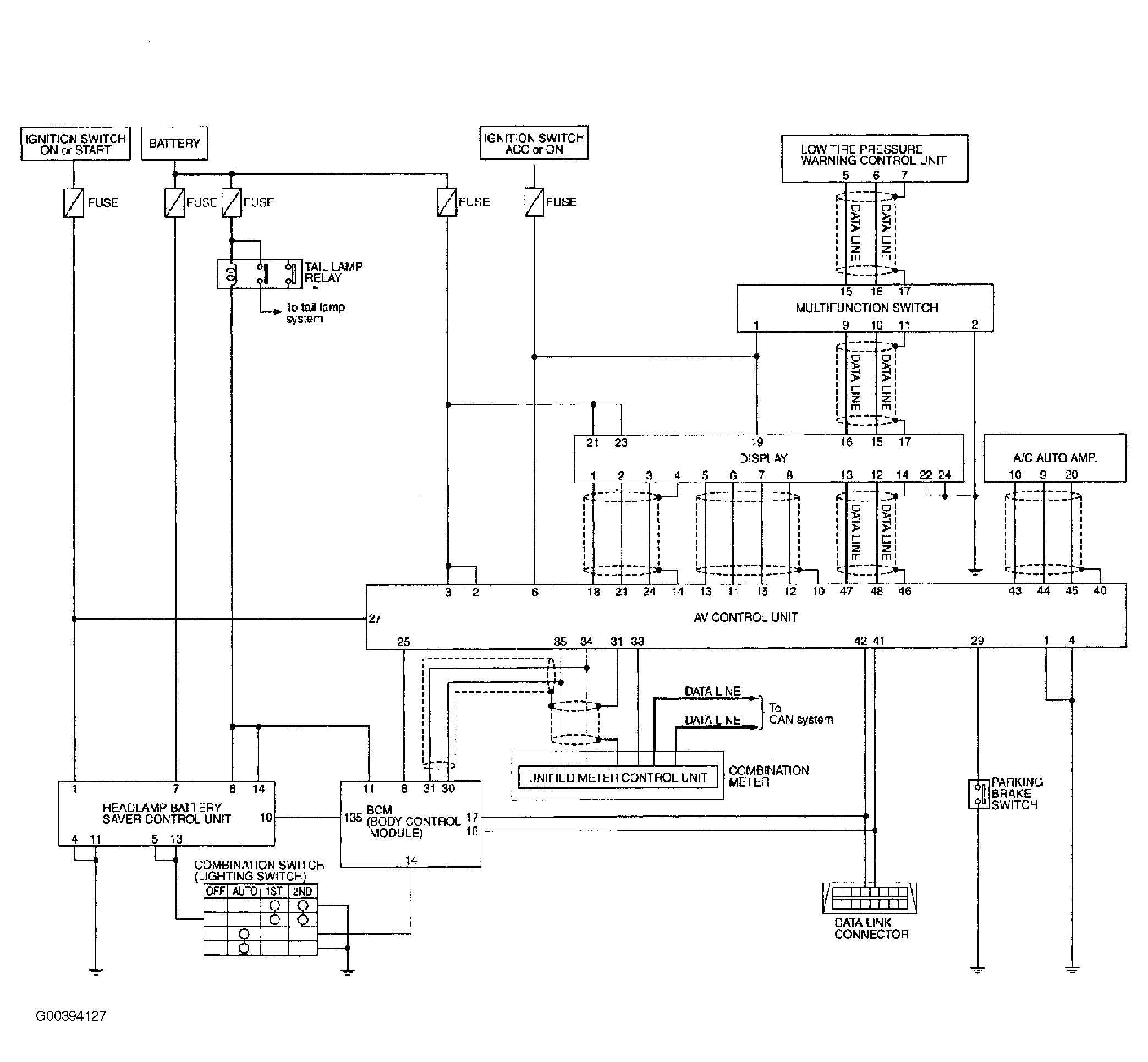

Fig 1: Schematic

G00394127

Courtesy of NISSAN MOTOR CO., U.S.A.

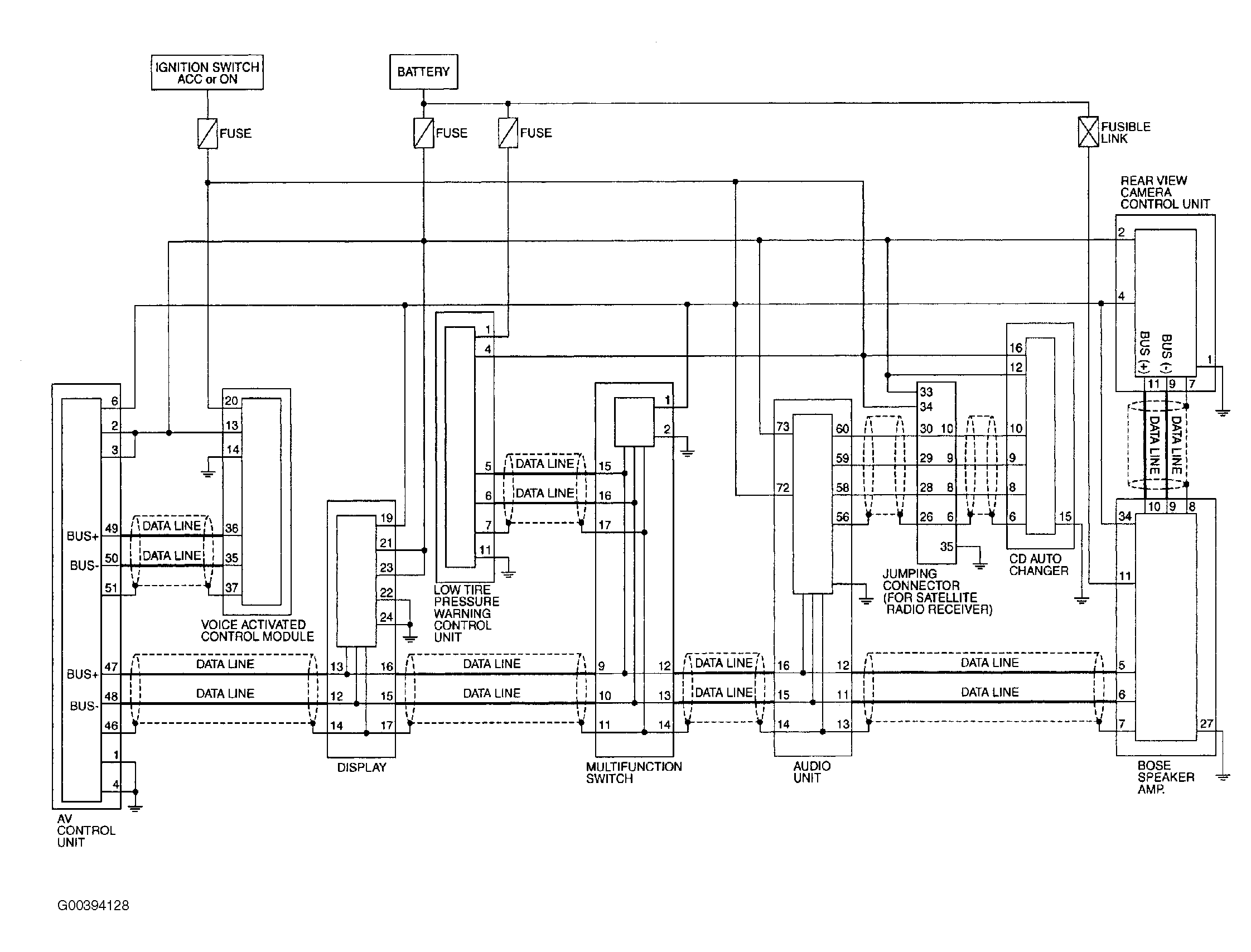

Fig 1: Schematic

G00394128

Courtesy of NISSAN MOTOR CO., U.S.A.
