Vehicle Information And Integrated Switch System/With Navigation System: Schematic

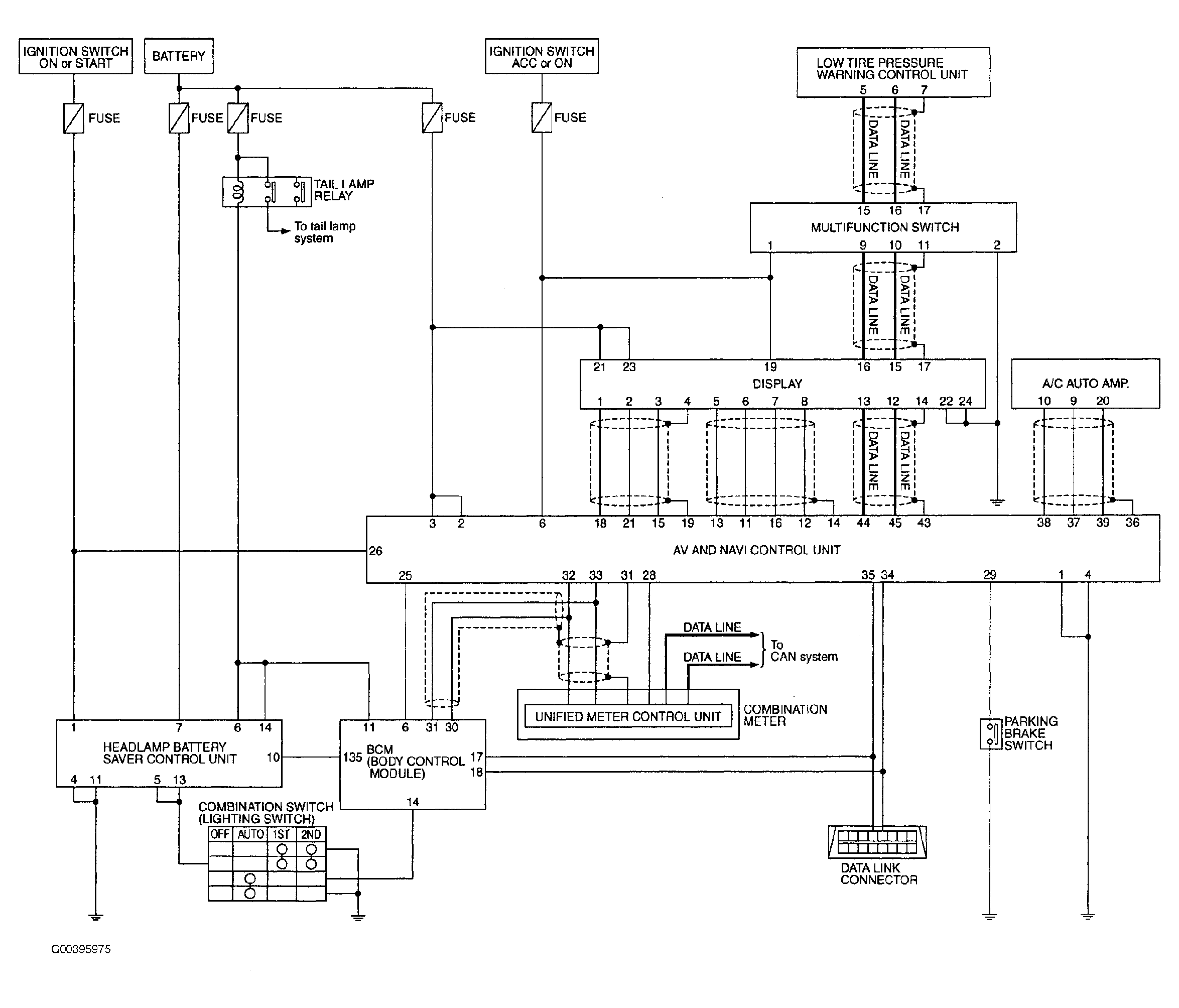

Fig 1: Schematic

G00395975

Courtesy of NISSAN MOTOR CO., U.S.A.
