Infiniti
>>
2004
>>
Q45
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Trouble Diagnosis
>>
Schematic
Trouble Diagnosis: Schematic

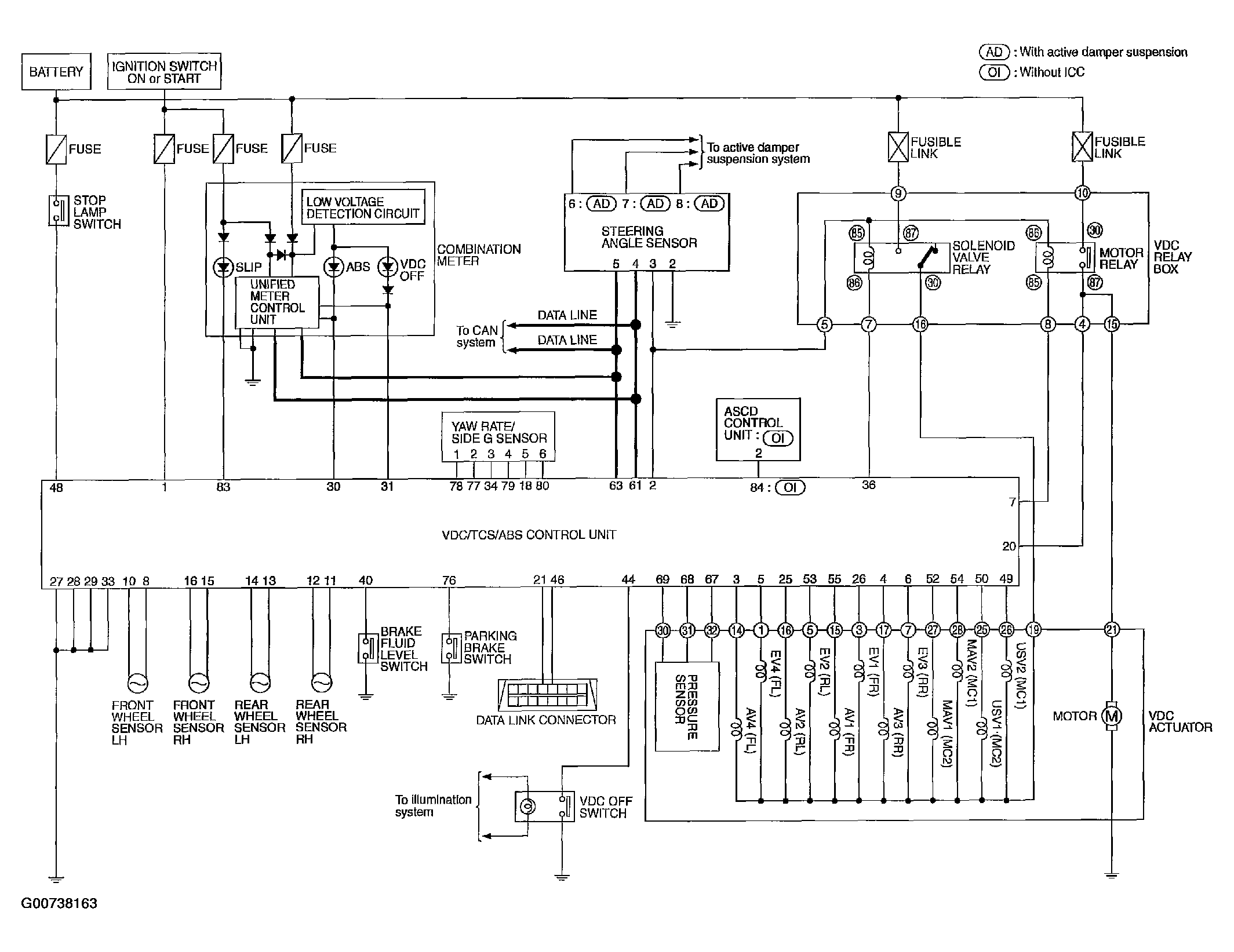

Fig 1: Displaying Brake Control System Circuits & Components
Courtesy of NISSAN MOTOR CO., U.S.A.
