Notes
Removal And Installation: Notes

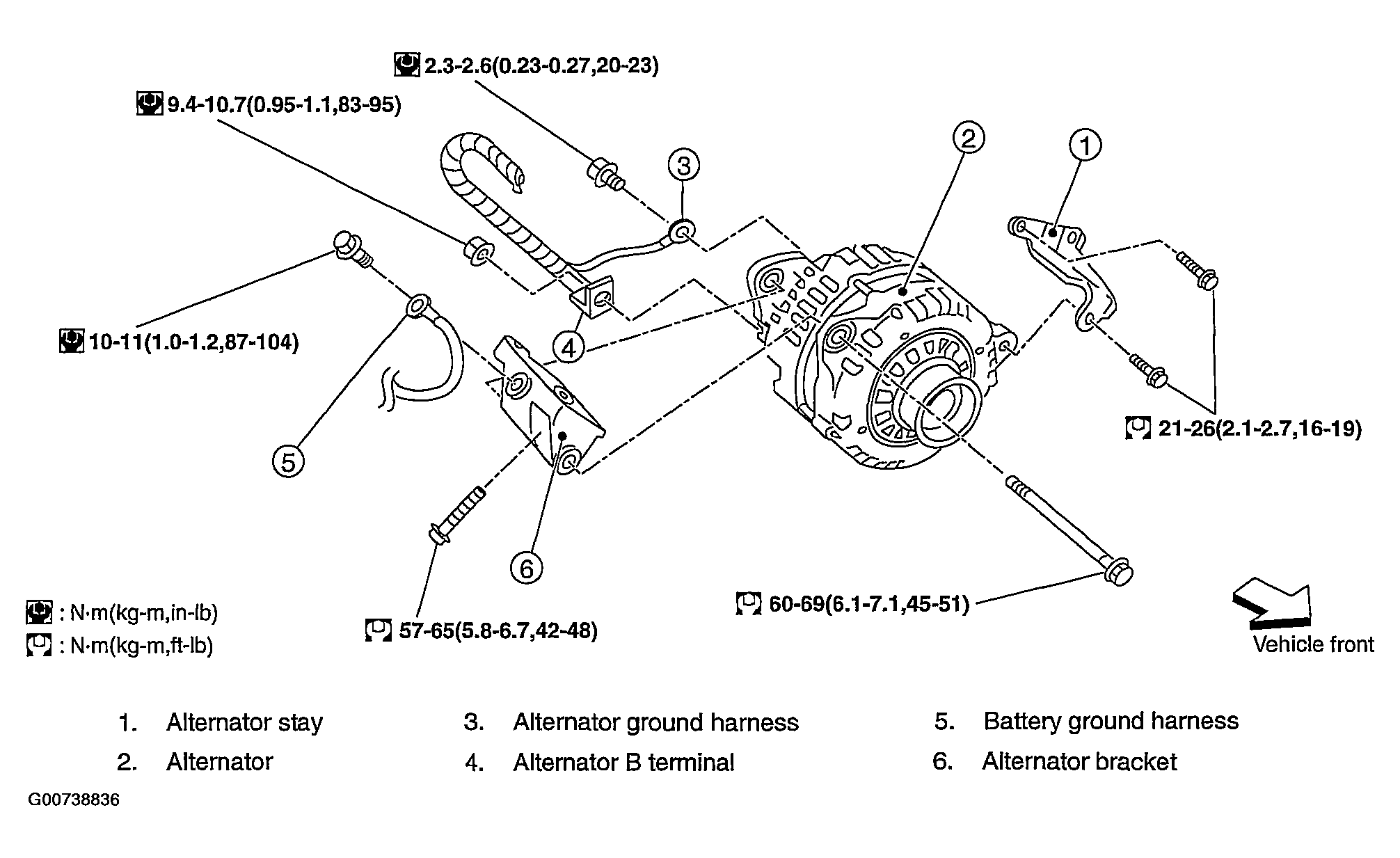

Fig 1: Removing & Installing Alternator
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
