Trouble Diagnosis: Schematic

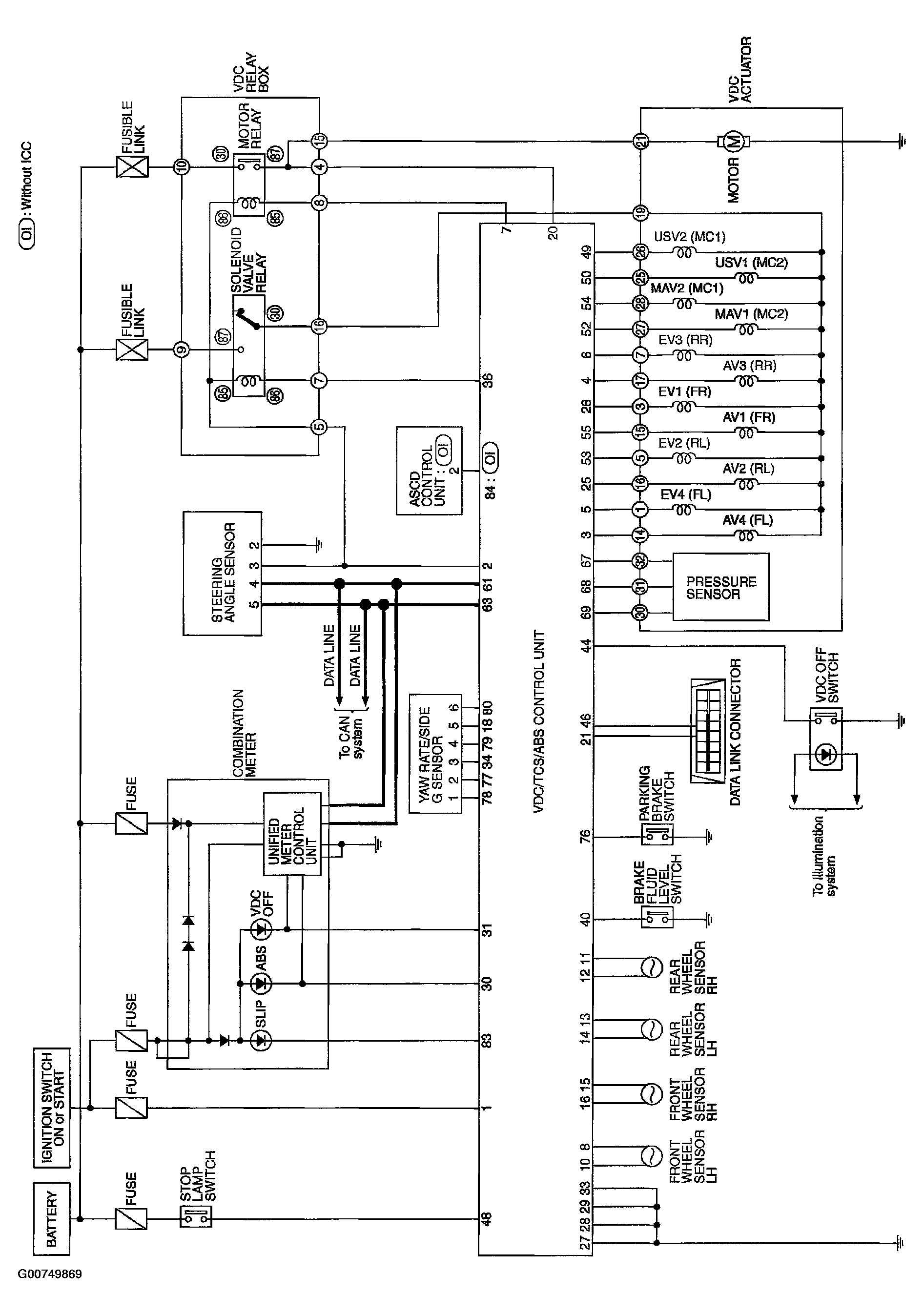

Fig 1: Identifying Layout Of Brake Control System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
