Hydraulic Circuit Diagram
Hydraulic Circuit Diagram

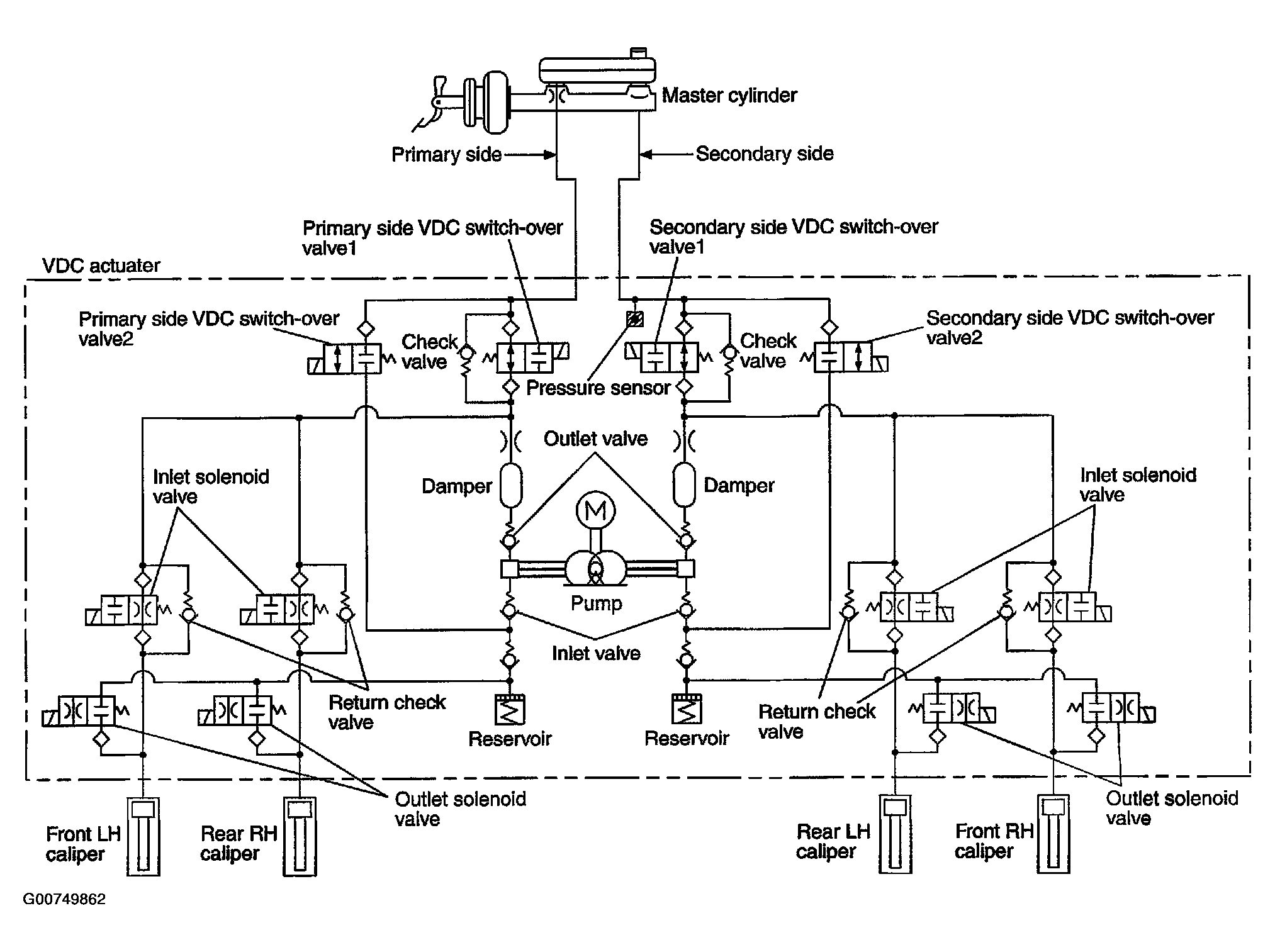

Fig 1: Identifying Hydraulic Circuit Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
