System Description: Schematic

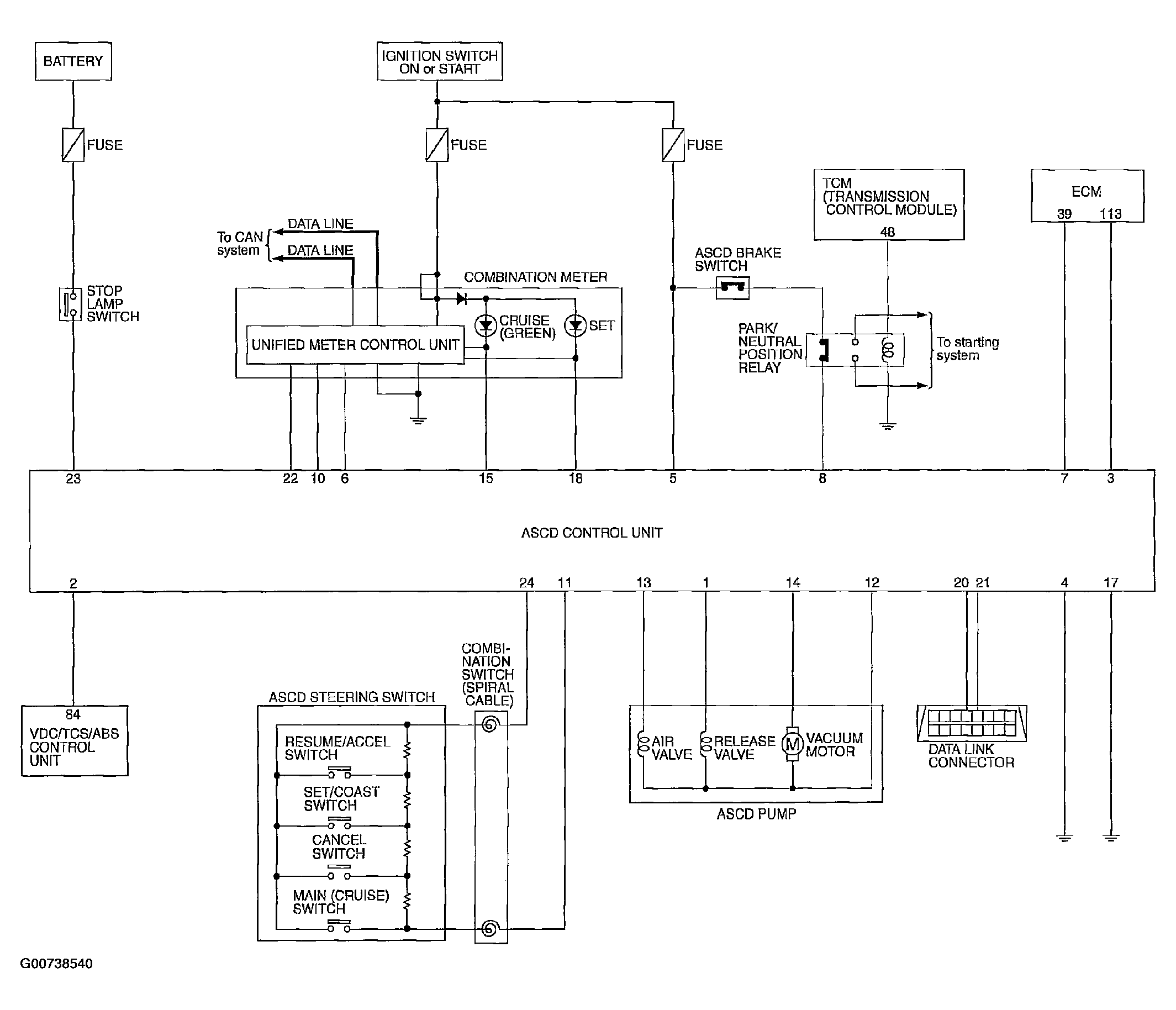

Fig 1: ASCD Wiring Schematic

G00738540

Courtesy of NISSAN MOTOR CO., U.S.A.
