Service Data And Specifications (SDS)
>>
General Specifications
General Specifications

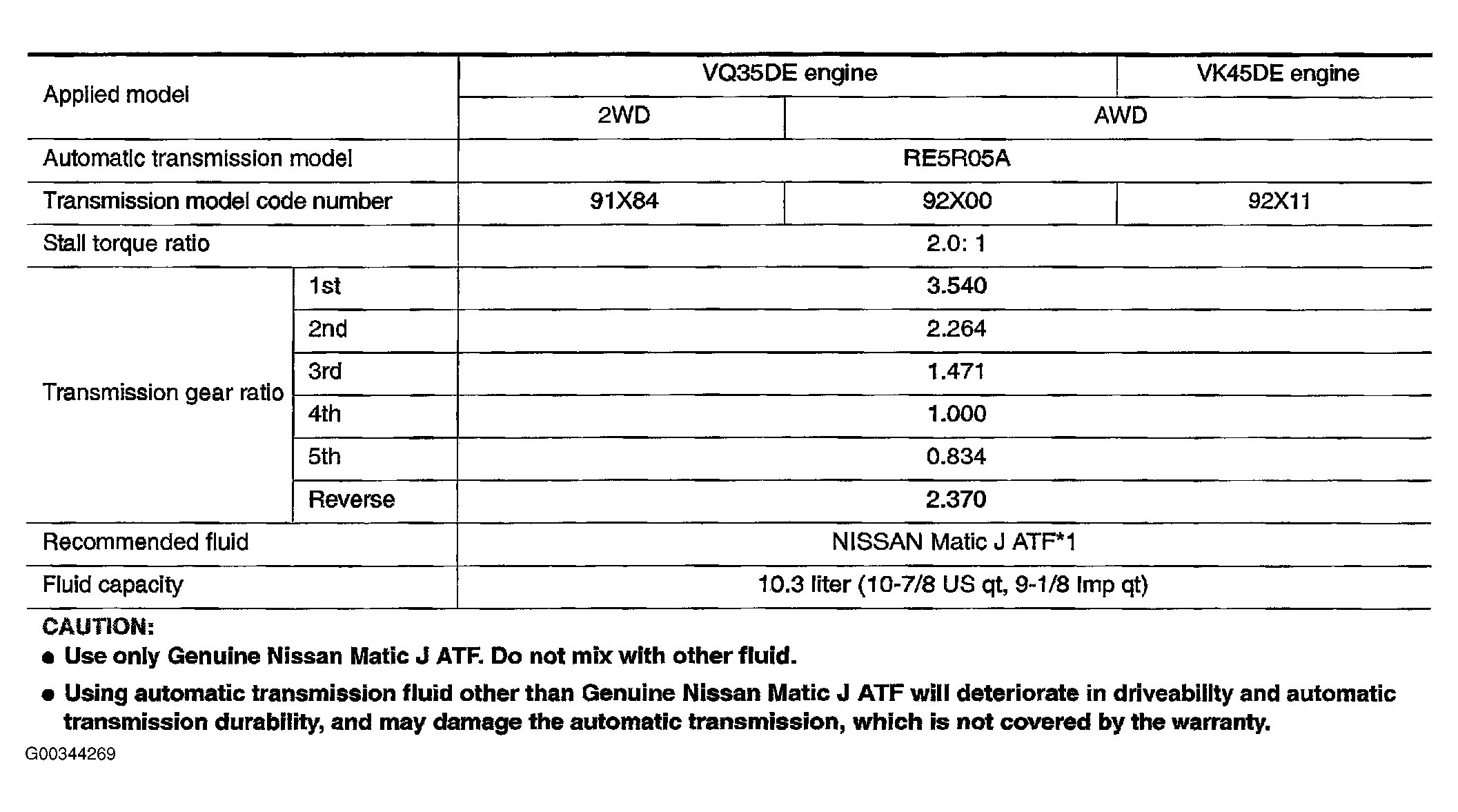

Fig 1: General Automatic Transmission Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
