Overall Inspection Sequence

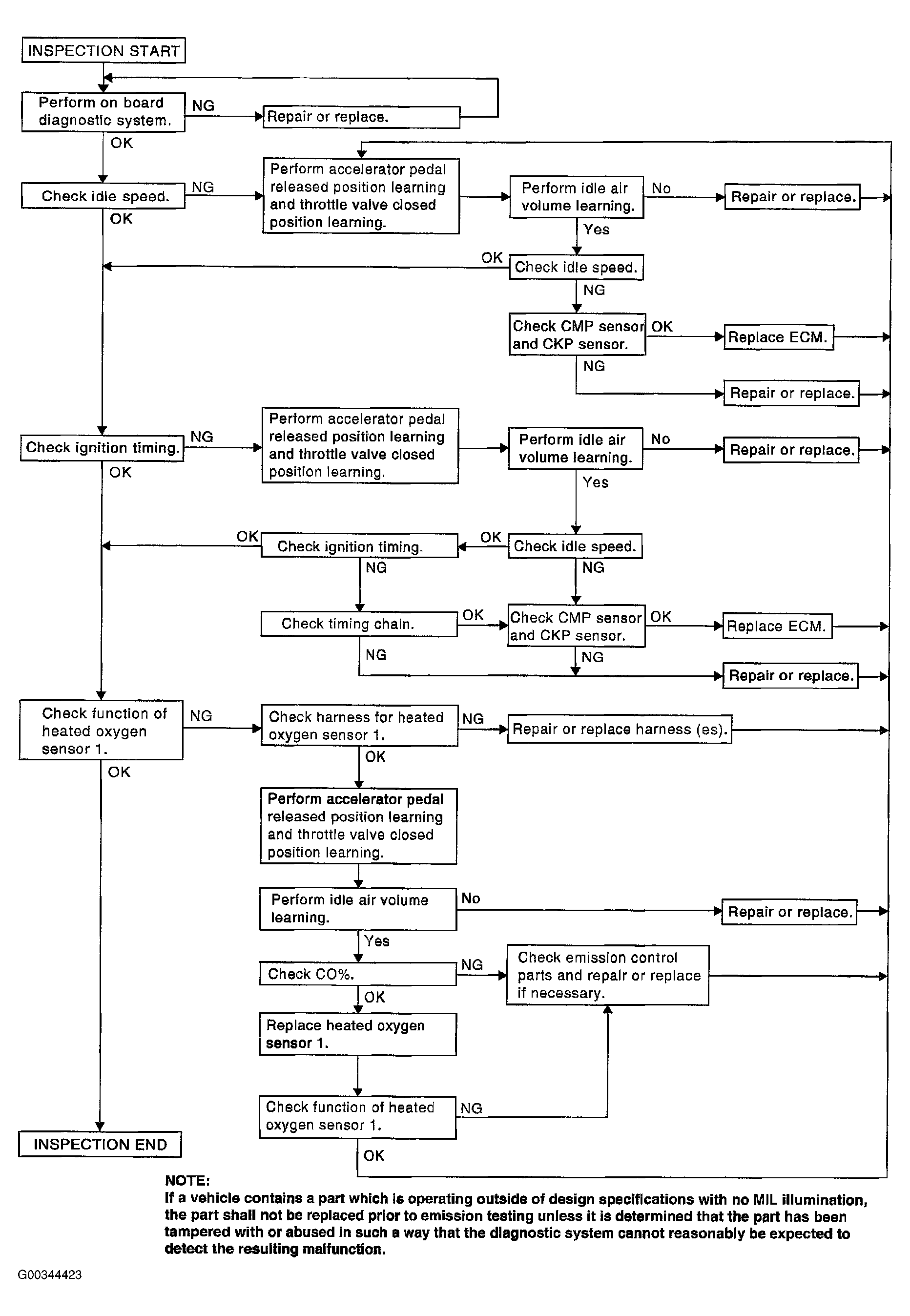

Fig 1: Identifying Overall Inspection Sequence For Basic Service Procedure
G00344423Courtesy of NISSAN MOTOR CO., U.S.A.
