Abs Actuator And Electric Unit: Notes

The ABS actuator and electric unit contains:

• An electric motor and pump
• Two relays
• Six solenoid valves, each inlet and outlet for
  • LH front
  • RH front
  • Rear
• ABS control unit

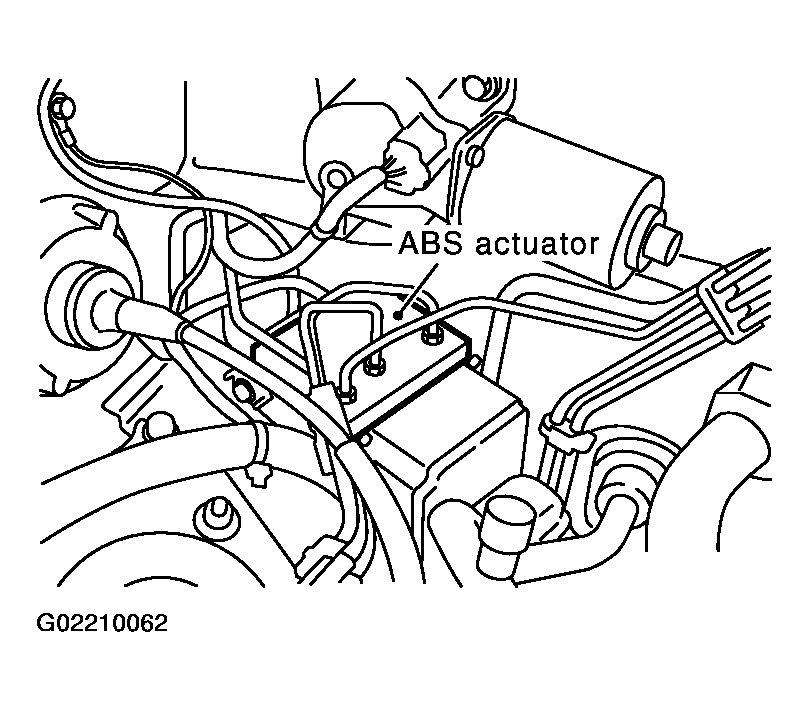

  Fig 1: Locating ABS Actuator

  Courtesy of NISSAN MOTOR CO., U.S.A.

This component controls the hydraulic circuit and increases, holds or decreases hydraulic pressure to all or individual wheels. The ABS actuator and electric unit is serviced as an assembly.
