Removal and Installation: Notes

NOTE: Spiral cable may snap due to steering operation if steering column is separated from steering gear. Therefore fix steering wheel with a string to avoid turns.

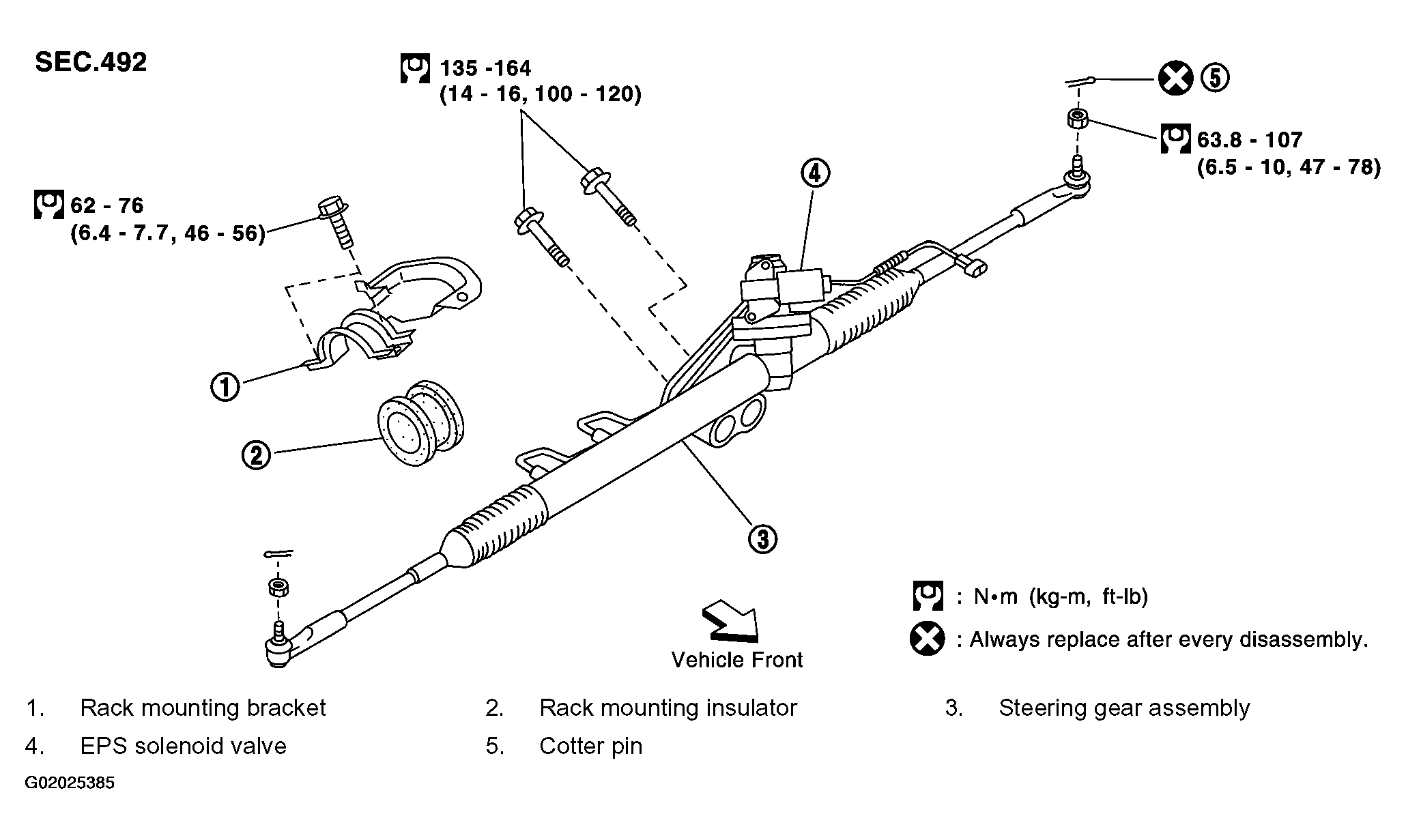

Fig 1: Removing Power Steering Gear Linkage And Identifying Torque
G02025385Courtesy of NISSAN MOTOR CO., U.S.A.
