Infiniti
>>
2003
>>
FX45
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
AWD System
>>
Wiring Diagram
AWD System: Wiring Diagram

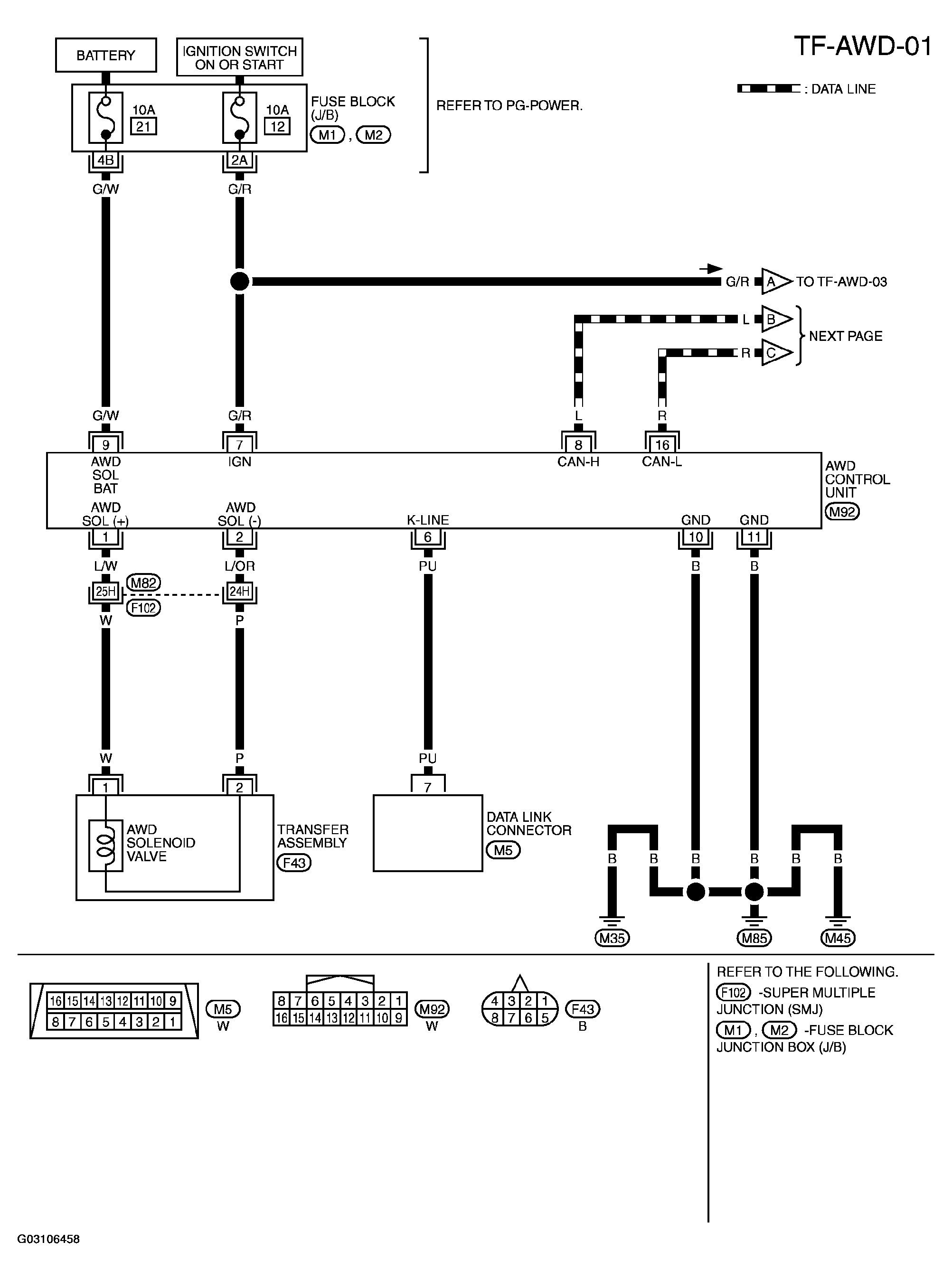

Fig 1: Identifying Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

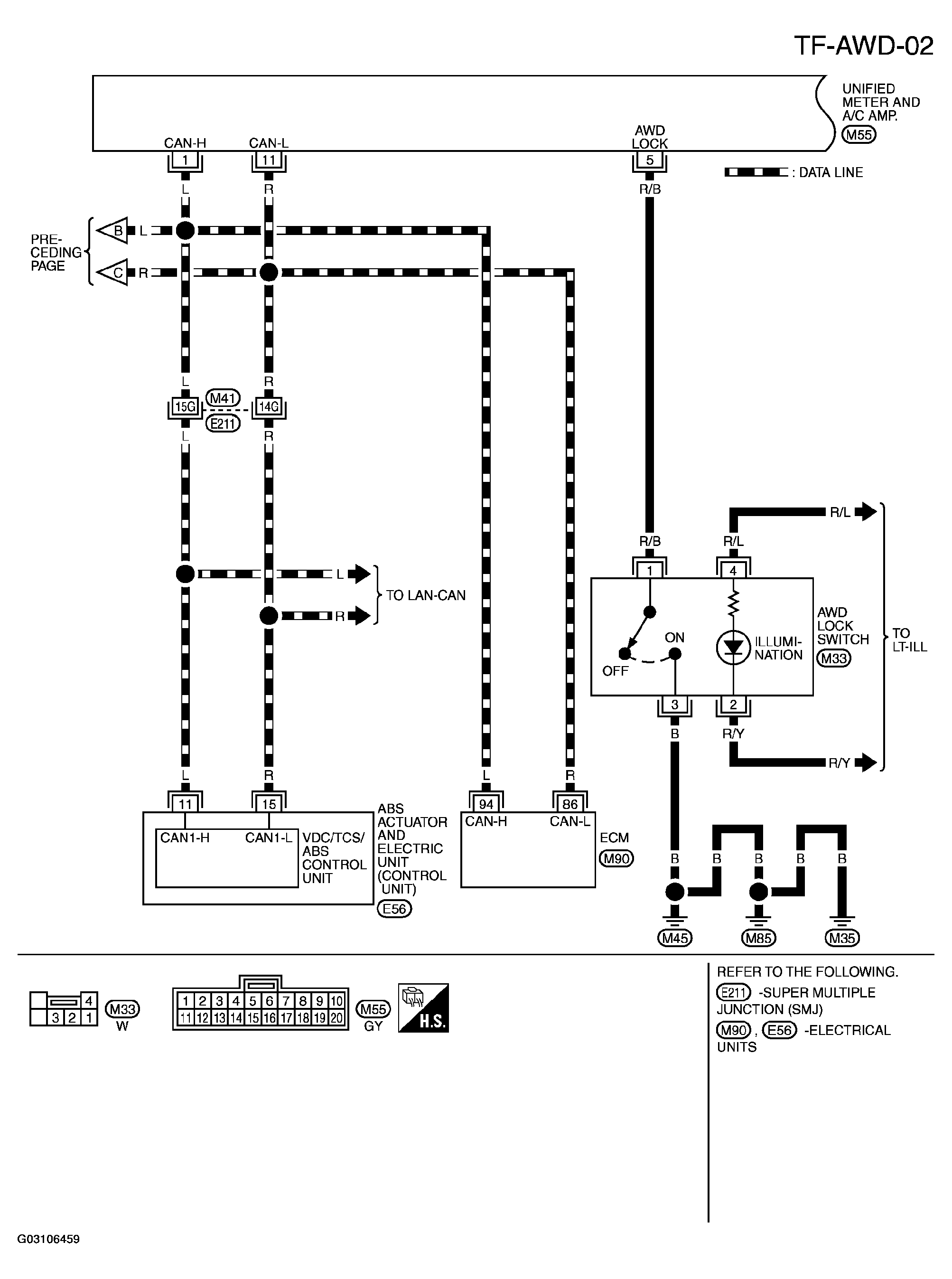

Fig 2: Identifying Wiring Diagram (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

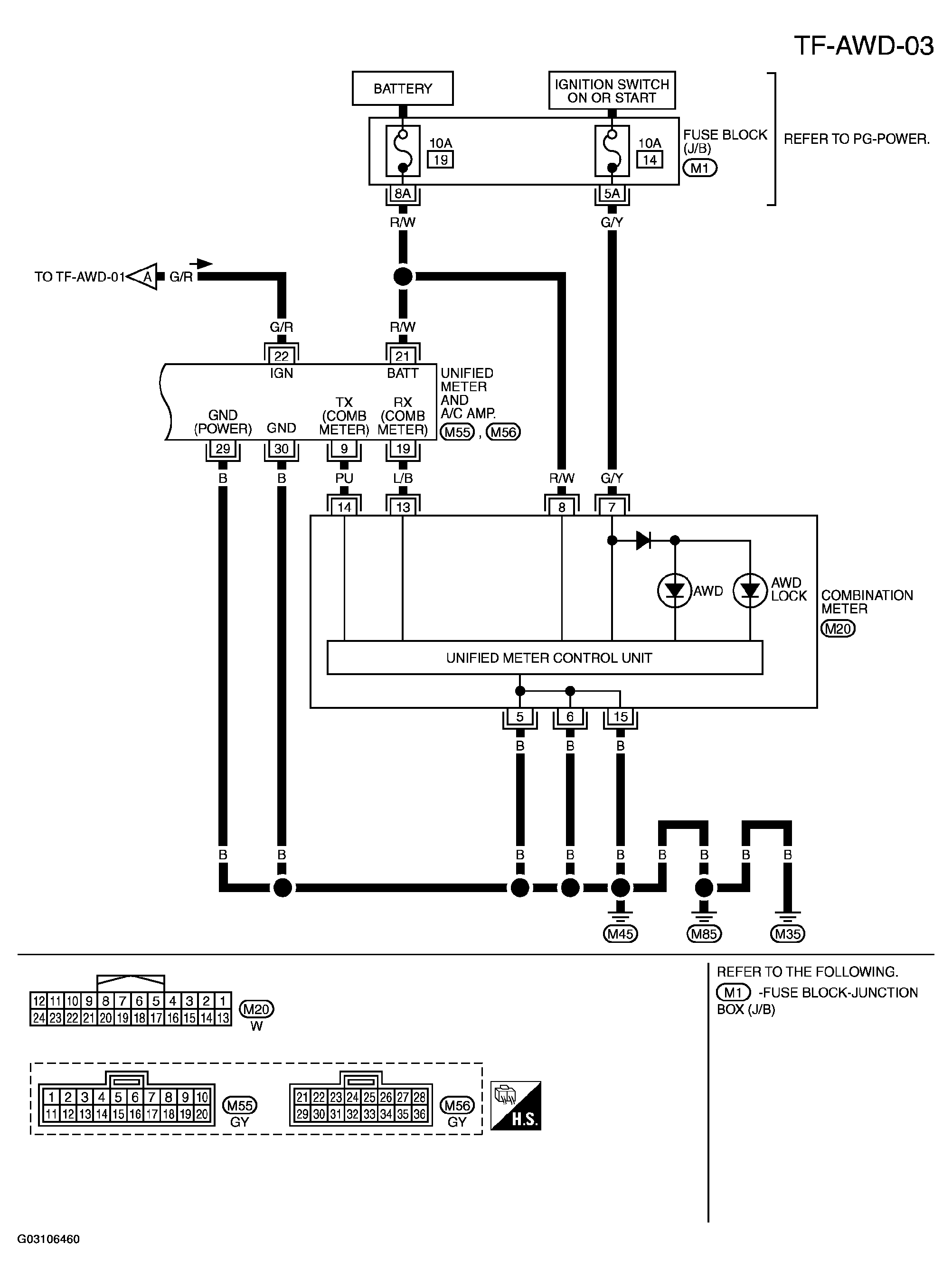

Fig 3: Identifying Wiring Diagram (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
