Terminals and Reference Value for A/C and AV Switch

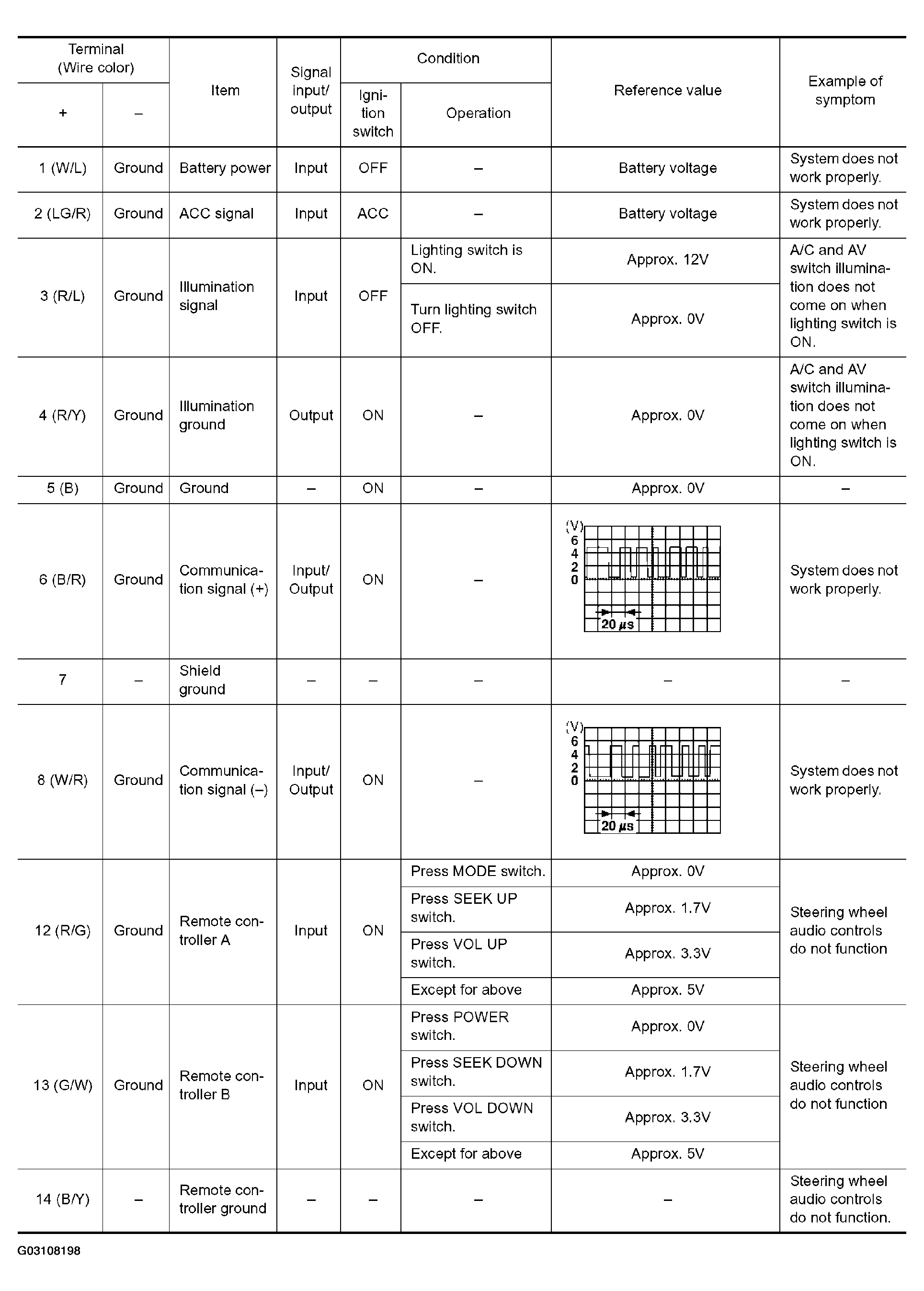

Fig 1: A/C And AV Switch Terminals And Reference Value Chart

G03108198

Courtesy of NISSAN MOTOR CO., U.S.A.
