Removal And Installation Of Rear View Camera Control Unit

  1. Remove the trunk trim.
  2. Remove the rear parcel shelf finisher.
  3. Remove the screws (2), and remove rear view camera control unit.

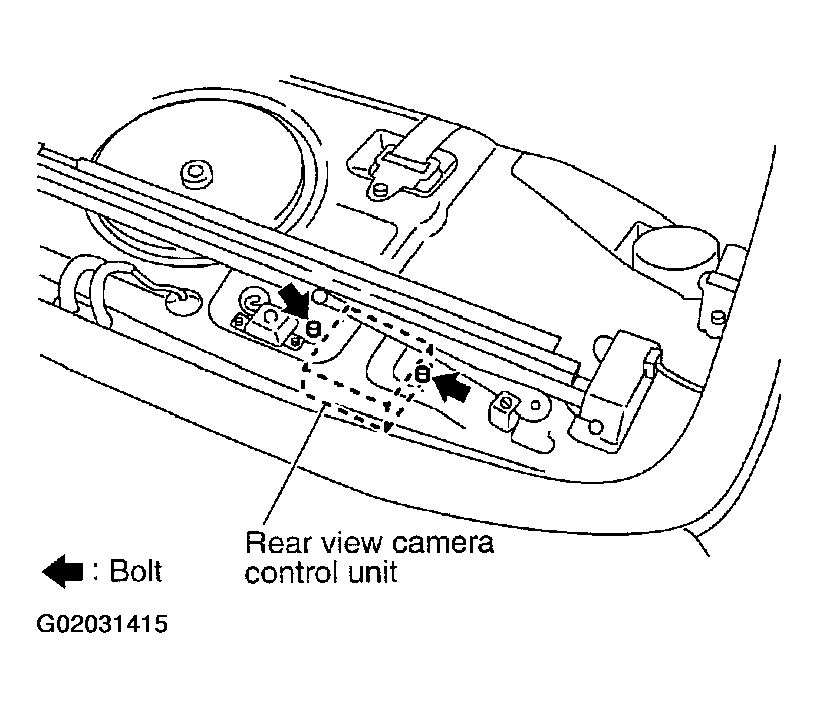

    Fig 1: Locating Rear View Camera Control Unit
    G02031415Courtesy of NISSAN MOTOR CO., U.S.A.
