Automatic Speed Control Device (ASCD): Schematic

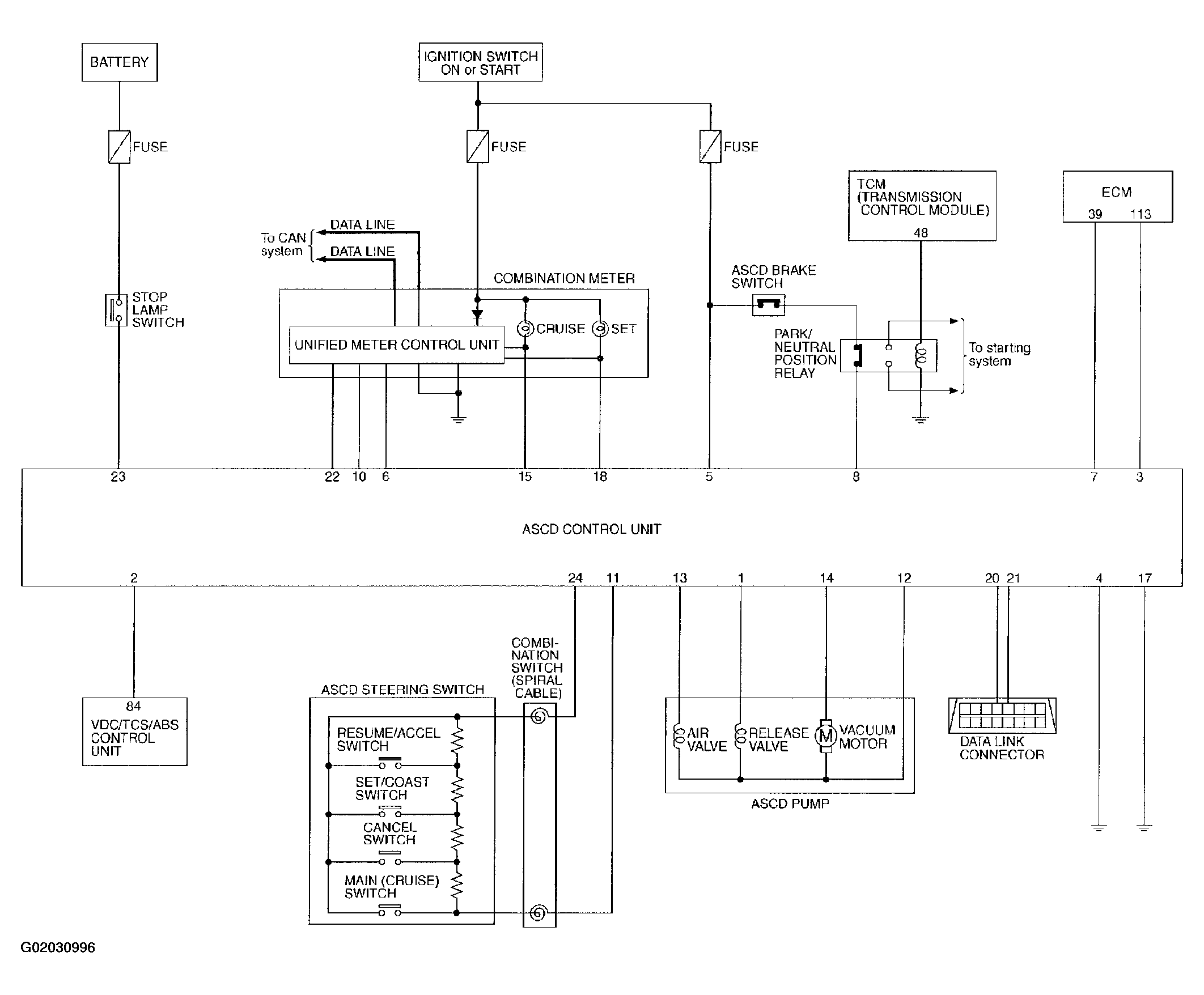

Fig 1: Automatic Speed Control Device (ASCD) Schematic Diagram

G02030996

Courtesy of NISSAN MOTOR CO., U.S.A.
