CONSULT-II Inspection Procedure

Turn ignition switch OFF.
Connect "CONSULT-II" to data link connector.

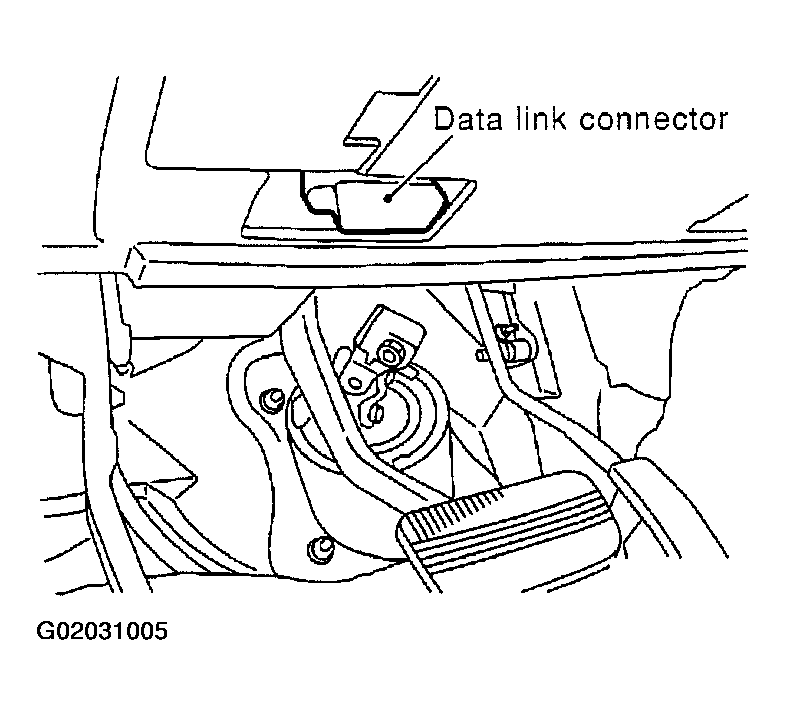

Fig 1: Connecting Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Turn ASCD main switch ON.
Touch START (on CONSULT-II display).
Touch ASCD.
Touch SELF-DIAG RESULTS.

Fig 2: Self-Diagnostic Procedure (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
- Self-diagnostic results are shown on display.
  Refer to "CONSULT-II SELF-DIAGNOSTIC RESULTS " table.

  Fig 3: Self-Diagnostic Procedure (2 Of 4)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Touch DATA MONITOR.

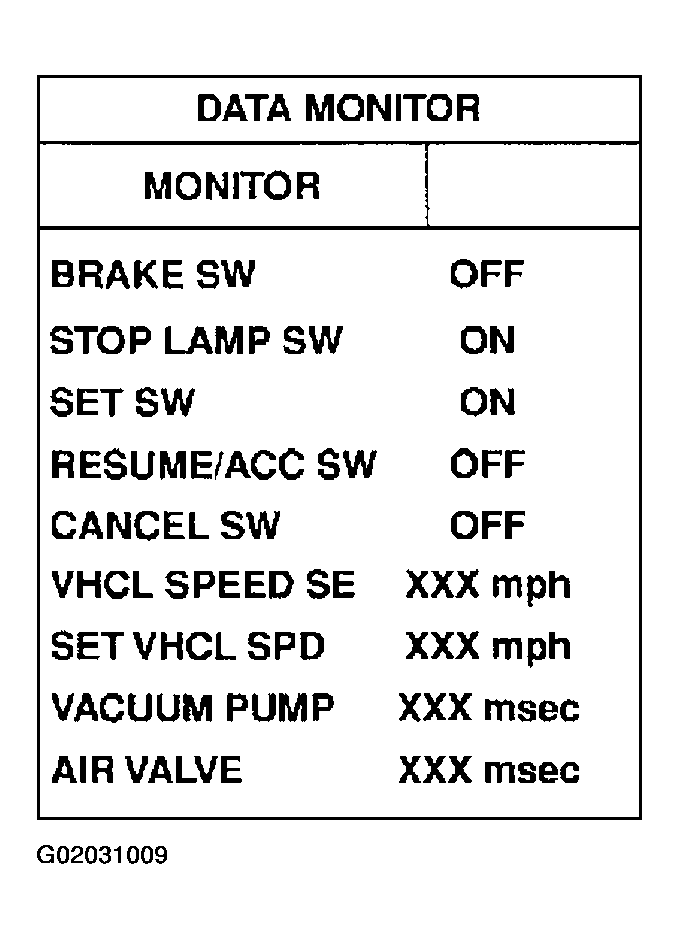

Fig 4: Self-Diagnostic Procedure (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
- Touch START.
- Data monitor results are shown on display.
  Refer to "CONSULT-II DATA MONITOR " table.
For further information, read the CONSULT-II Operation Manual.

Fig 5: Self-Diagnostic Procedure (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
