Revolution Sensor R & I

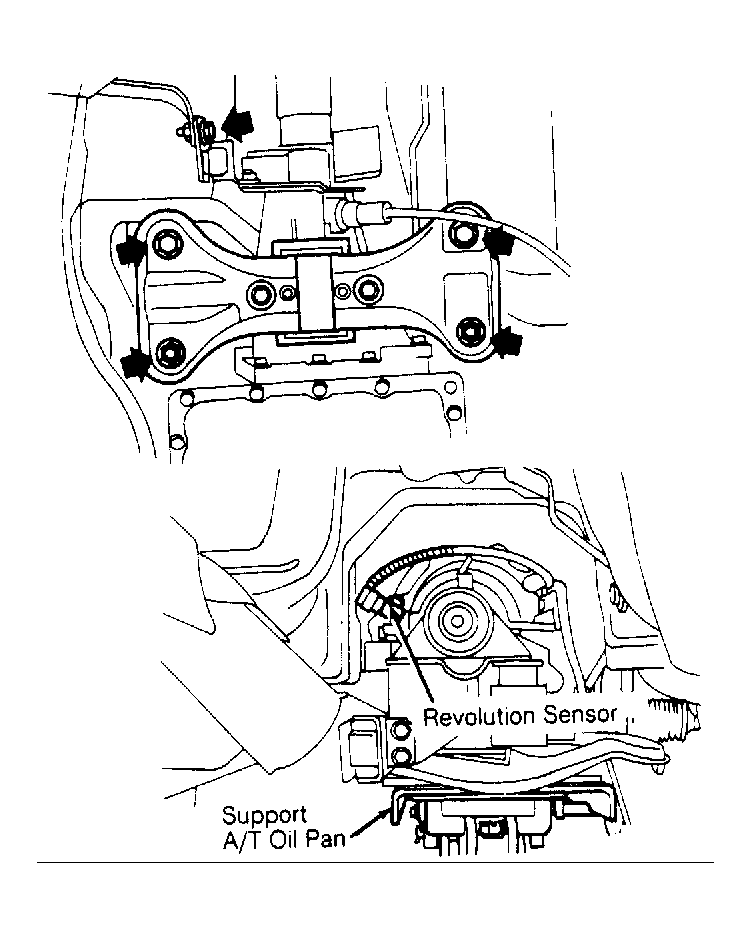

On Q45, remove exhaust tube. On all models, remove drive shaft from vehicle. Remove rear mounting member from body while supporting transmission with floor jack. See Fig 1. Lower transmission as far as possible. Remove revolution sensor. To complete installation, reverse removal procedure.
