Traction Control System
>>
Wiring Diagrams
Wiring Diagrams

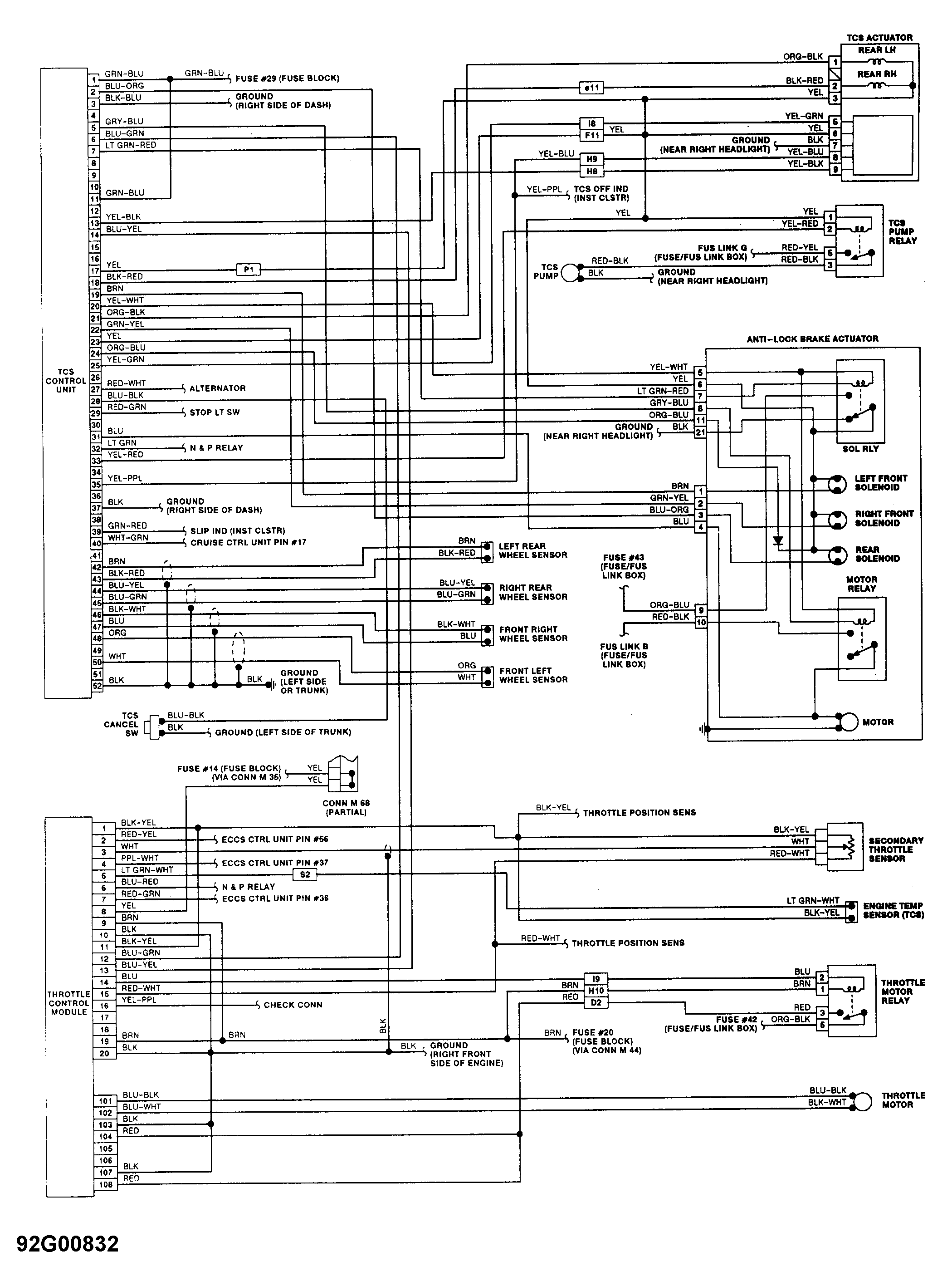

Fig 1: TCS Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
