Throttle Valve Switch

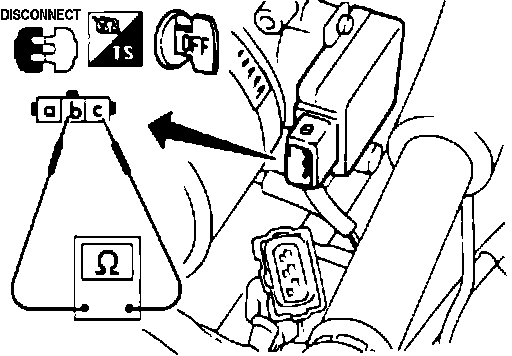

Fig. 212 Throttle Valve Switch Continuity Test:

1. Disconnect idle switch harness connector.
2. Check continuity between terminals B and C, Fig. 212.
3. Continuity should exist with accelerator pedal released.
4. No continuity should exist with accelerator pedal depressed.
