Circuit Diagram

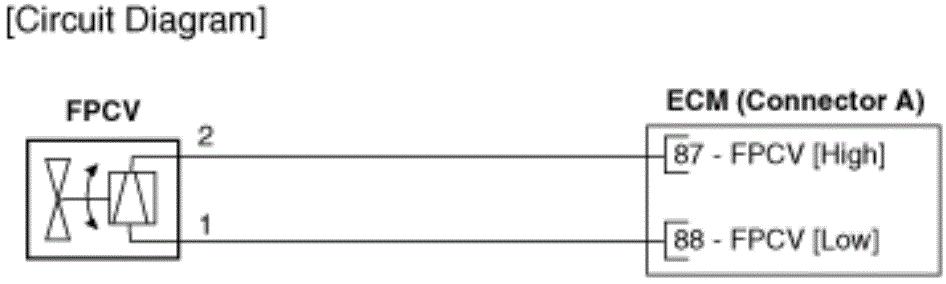

G15477177

Courtesy of HYUNDAI MOTOR AMERICA

TERMINAL AND FUNCTION DESCRIPTION

Terminal	Connected	Function
1	ECM Connector A (88)	FPCV [LOW]
2	ECM Connector A (87)]	FPCV [High]
