Bank 1/Exhaust

  1. Disconnect the battery (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER REPAIR PROCEDURES ")

  3. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

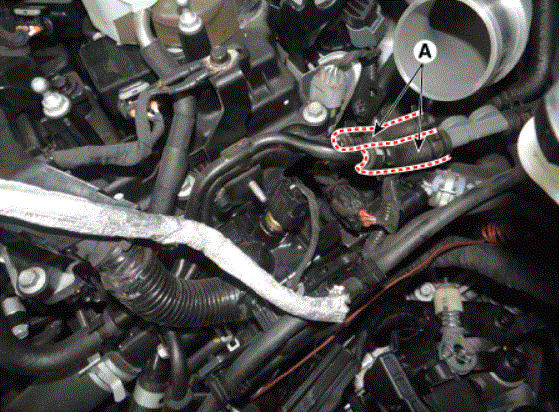

  4. Disconnect the vacuum hoses (A).
    G16186148Courtesy of HYUNDAI MOTOR AMERICA

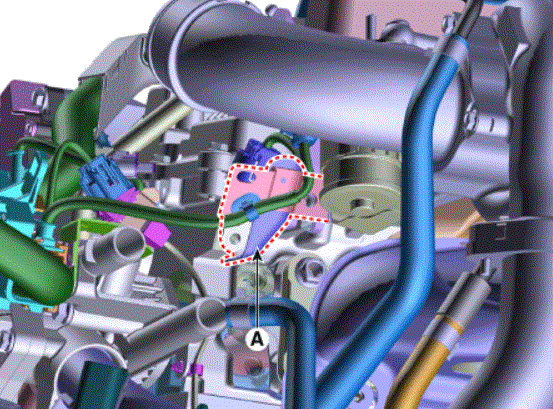

  5. Remove the camshaft position sensor bracket (A) after loosening the mounting bolt.
    G16186149Courtesy of HYUNDAI MOTOR AMERICA

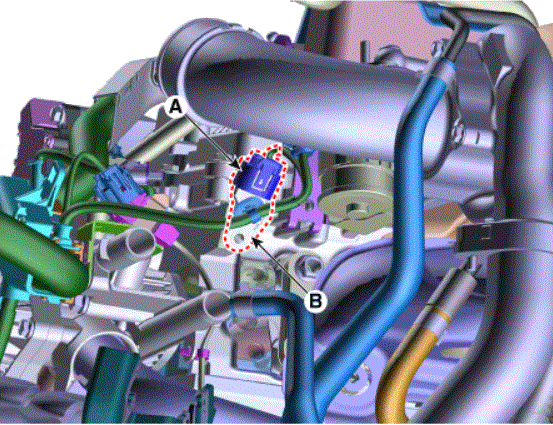

  6. Disconnect the camshaft position sensor connector (A).
  7. Remove the camshaft position sensor (B) after loosening the mounting bolt.
G16186150Courtesy of HYUNDAI MOTOR AMERICA
