Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the air cleaner assembly

    (Refer to Engine Mechanical System - "AIR CLEANER ")

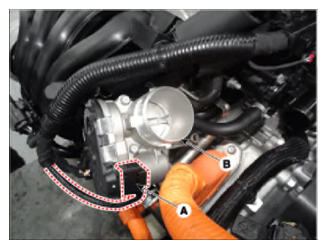

  3. Disconnect the ETC module connector (A).
  4. Remove the ETC module (B) from the engine after loosening the bolts.
G13843220Courtesy of HYUNDAI MOTOR AMERICA
