Bank 1/Sensor 1

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the connector (A), and then remove the sensor (B).
    G13039459Courtesy of HYUNDAI MOTOR AMERICA

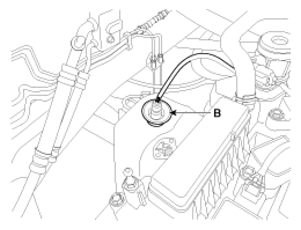

    G13039460Courtesy of HYUNDAI MOTOR AMERICA
