Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the canister assembly.

    (Refer to Emission Control System - "CANISTER ")

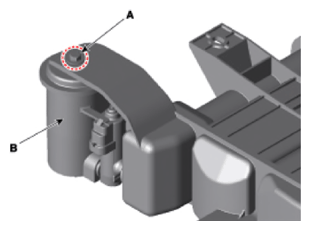

  3. Remove the installation bolt (A), and then remove the air filter (B).
    G14084542Courtesy of HYUNDAI MOTOR AMERICA

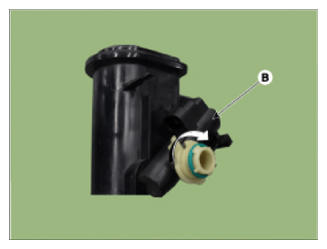

  4. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the illustration.
    G14084543Courtesy of HYUNDAI MOTOR AMERICA
    G14084544Courtesy of HYUNDAI MOTOR AMERICA
  5. Install a new fuel tank air filter in accordance with the reverse order.
