Smart Key Code Saving

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    G13035582Courtesy of HYUNDAI MOTOR AMERICA

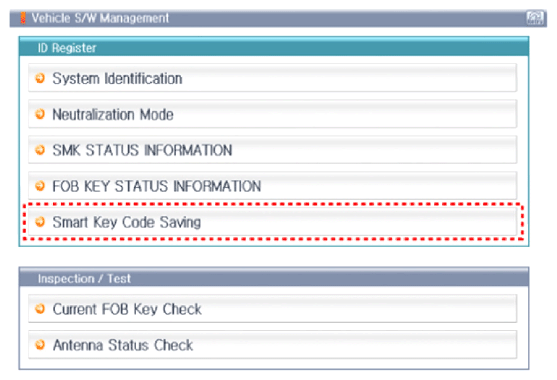

  2. Select the vehicle model and then do "Smart key code saving".
    G13035583Courtesy of HYUNDAI MOTOR AMERICA

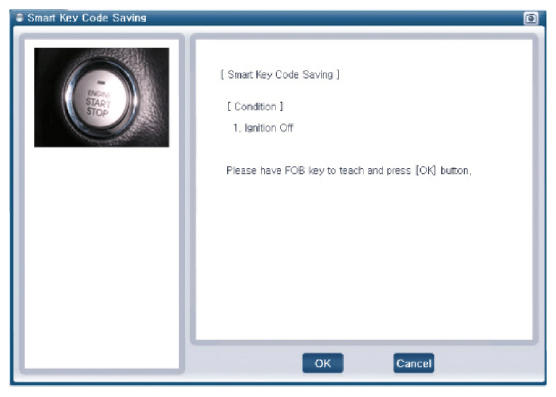

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be displayed below.
    G13035584Courtesy of HYUNDAI MOTOR AMERICA
  4. After having the teaching smart key, push "ENTER" key.

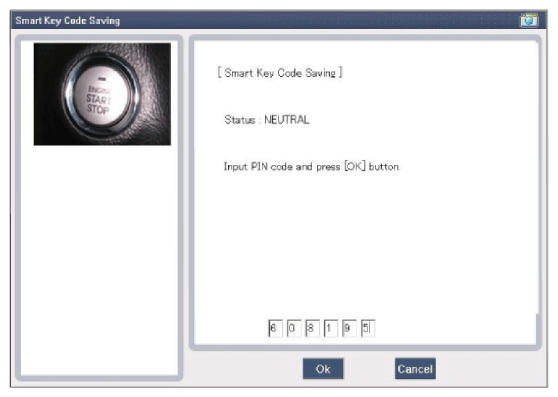

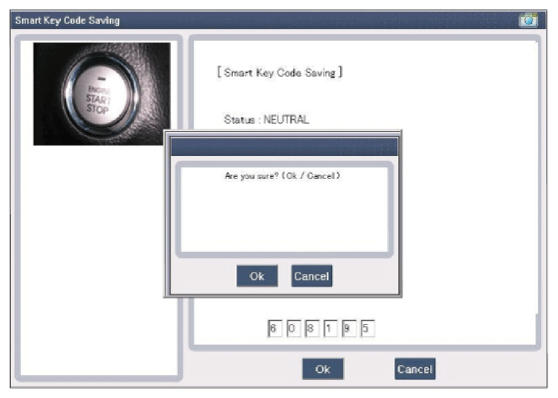

  5. Input the "Pin code" for first key teaching.
    G13035585Courtesy of HYUNDAI MOTOR AMERICA
    G13035586Courtesy of HYUNDAI MOTOR AMERICA

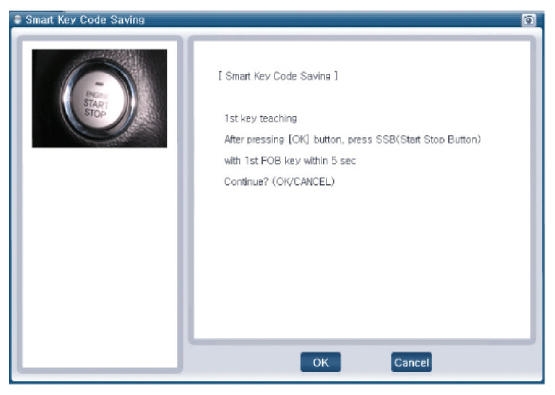

  6. Press the SSB with smart key within 5 sec after pressing "OK".
  7. Confirm the message "First key teaching completed".
    G13035587Courtesy of HYUNDAI MOTOR AMERICA
    G13035588Courtesy of HYUNDAI MOTOR AMERICA

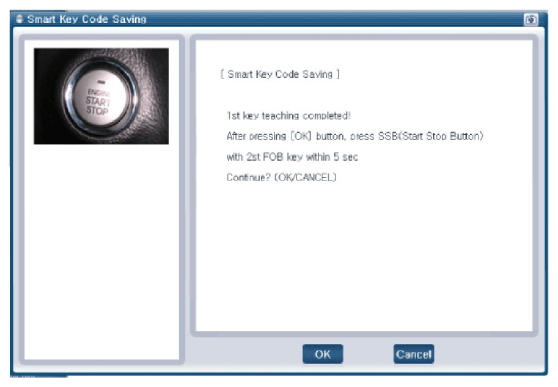

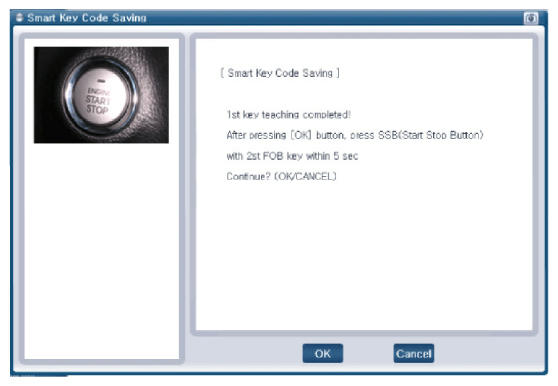

  8. Press the SSB with smart key within 5 sec after pressing "OK".
  9. Confirm the message "Second key teaching completed".
    G13035589Courtesy of HYUNDAI MOTOR AMERICA
    G13035590Courtesy of HYUNDAI MOTOR AMERICA

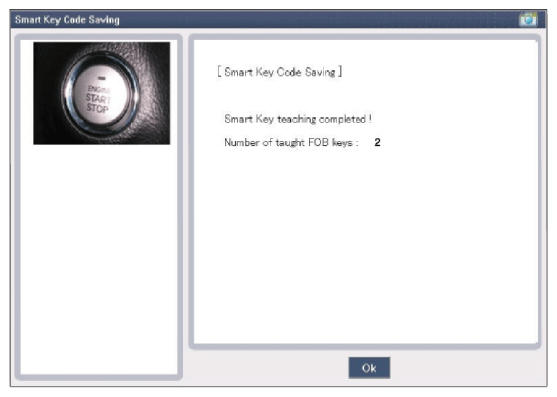

  10. Then the screen will be displayed below when key teaching process is completed.
    G13035591Courtesy of HYUNDAI MOTOR AMERICA
