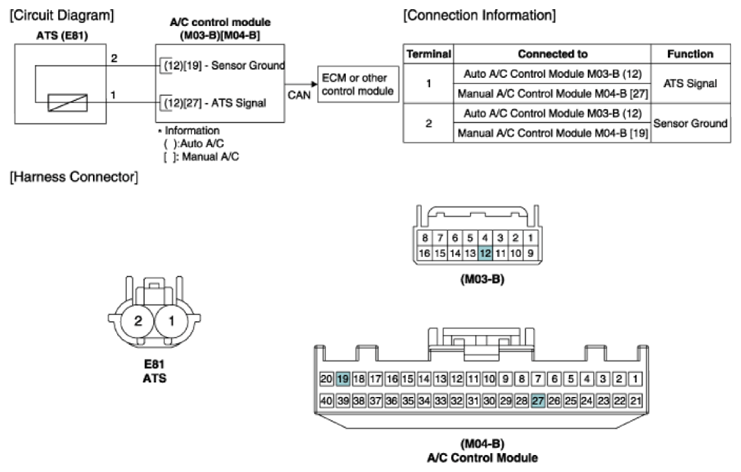

Home >> Hyundai >> 2020 >> Elantra Eco >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.4L >> Ambient Temperature Sensor (ATS) >> Schematic Diagrams >> Circuit Diagram
