Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

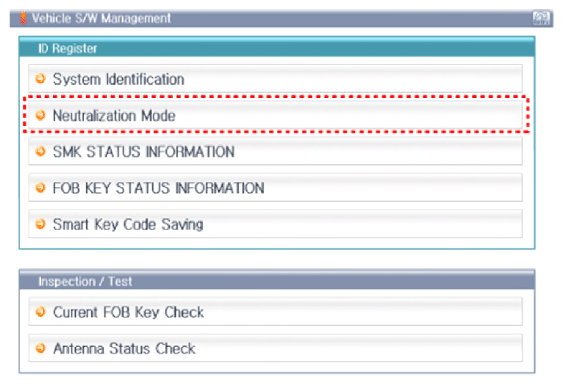

    G13035615Courtesy of HYUNDAI MOTOR AMERICA

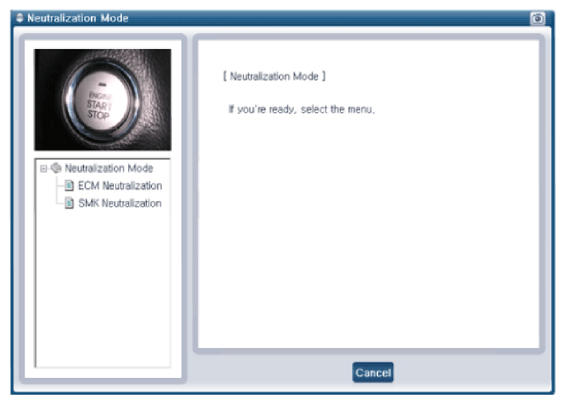

    G13035616Courtesy of HYUNDAI MOTOR AMERICA

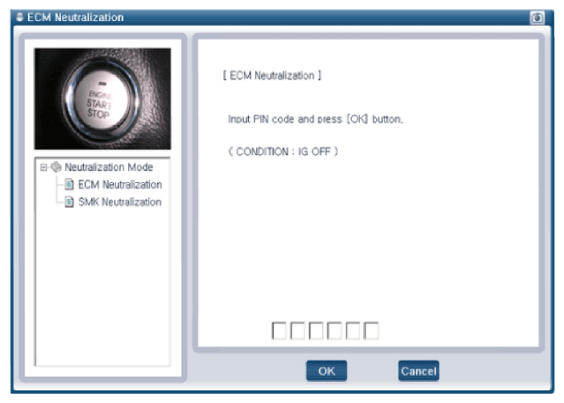

    G13035617Courtesy of HYUNDAI MOTOR AMERICA

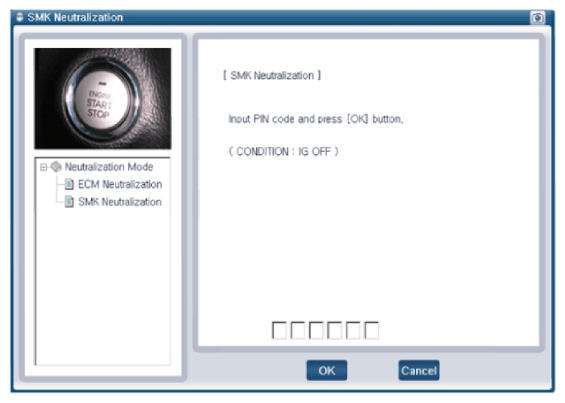

    G13035618Courtesy of HYUNDAI MOTOR AMERICA
