Home >> Hyundai >> 2017 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Oil Pump >> Components And Components Location >> Components

Components And Components Location: Components

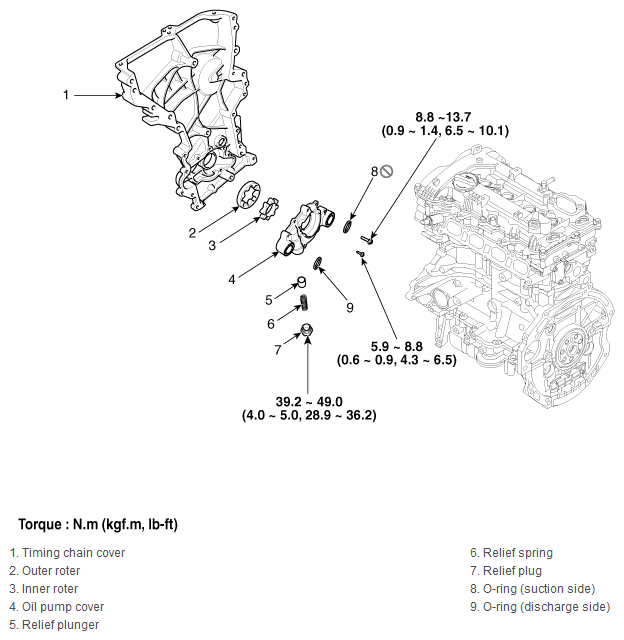

Fig 1: Oil Pump Components With Torque Specification

G12074266

Courtesy of HYUNDAI MOTOR AMERICA
