Emission Control System - General Information
>>
Components And Components Location
>>
Components Location
Components Location

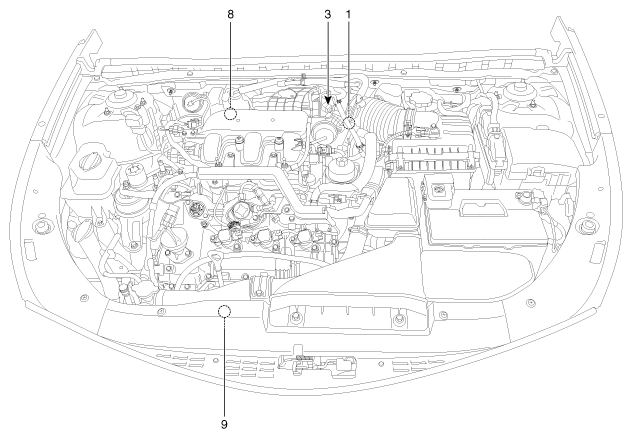

Fig 1: Emission Control System Components (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

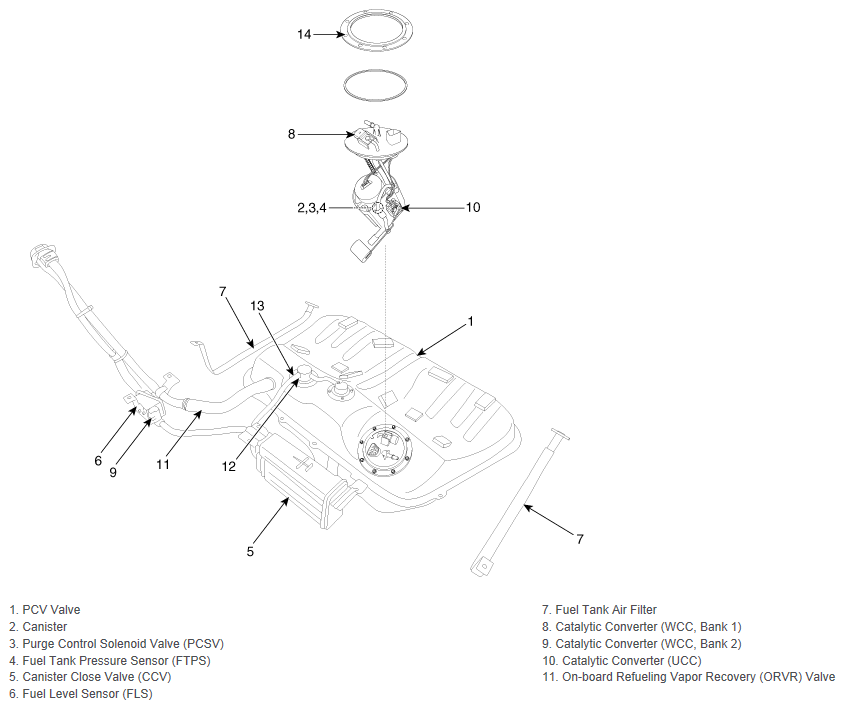

Fig 2: Emission Control System Components (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

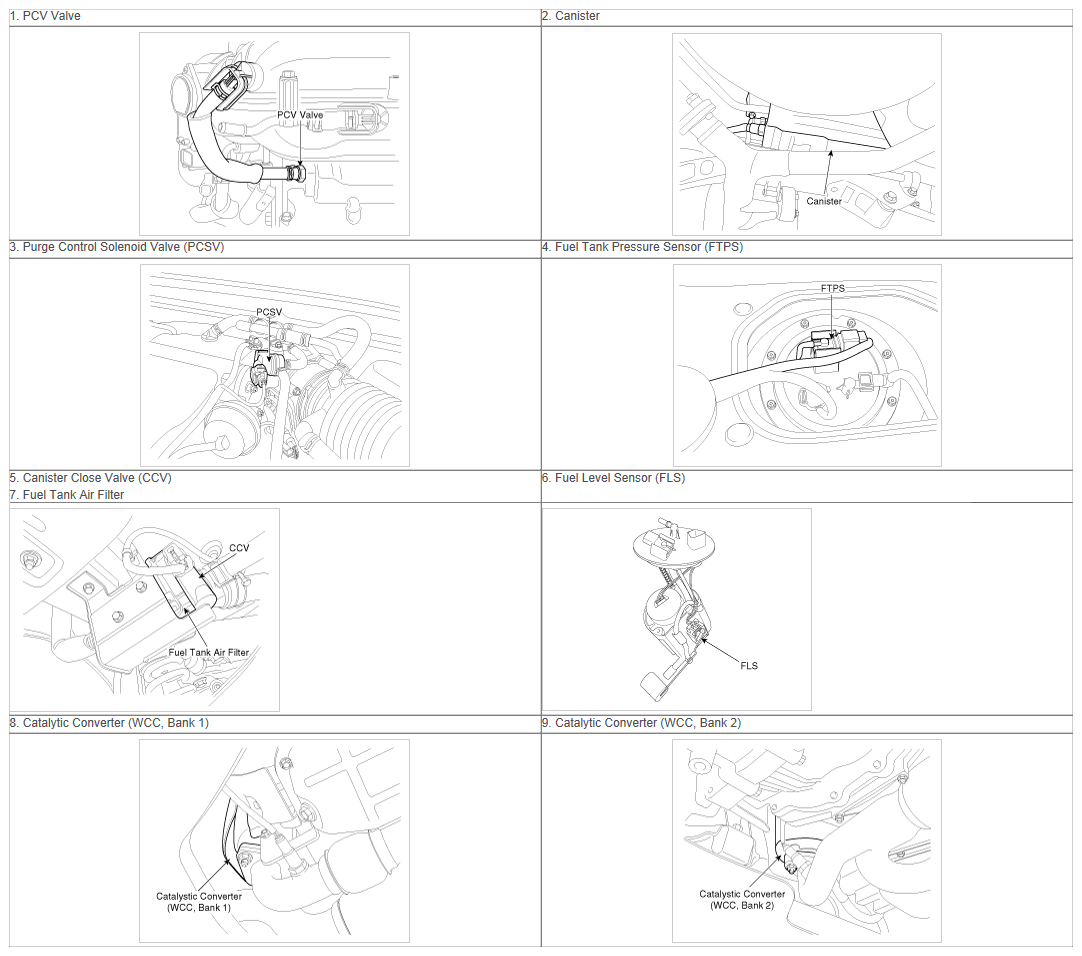

Fig 3: Emission Control System Components (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

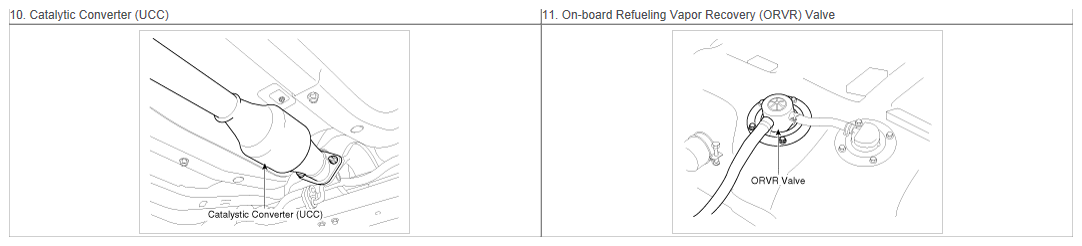

Fig 4: Emission Control System Components (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
