Components And Components Location: Components

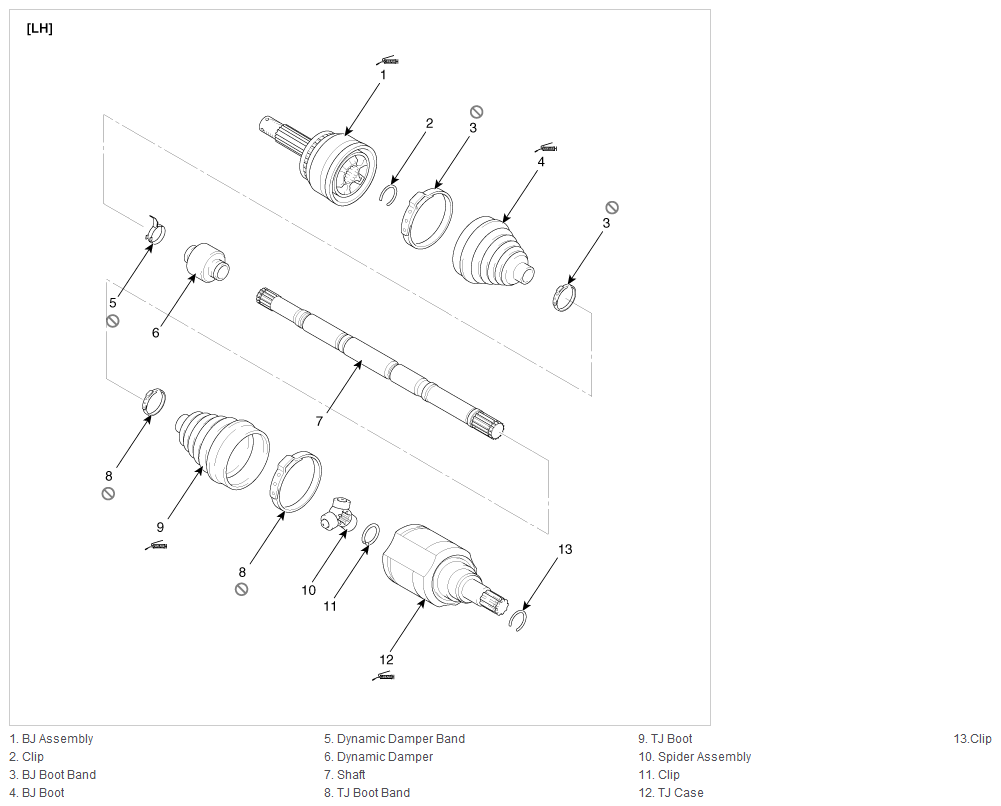

Fig 1: Exploded View Of Front Driveshaft Components (LH)
G12089247Courtesy of HYUNDAI MOTOR AMERICA

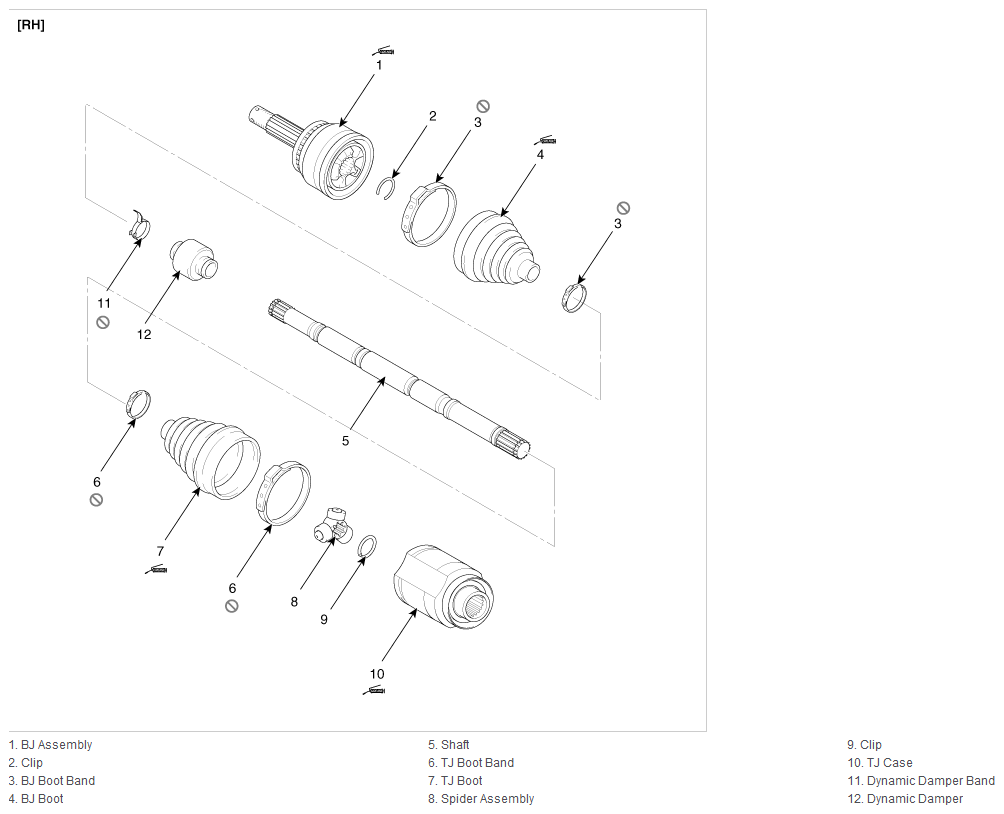

Fig 2: Exploded View Of Front Driveshaft Components (RH)
G12089248Courtesy of HYUNDAI MOTOR AMERICA
