Repair procedures: Replacement

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the front seat back cover.
(Refer to "FRONT SEAT BACK COVER ")
Remove the front seat cushion cover.
(Refer to "FRONT SEAT CUSHION COVER ")
Remove the mounting bolt (A).

Fig 1: Front Seat Cushion Cover Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).
After loosening the mounting bolts, remove the front seat cushion extension cushion modules (B).

Fig 2: Front Seat Cushion Extension Cushion Modules And Connector
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, remove the cushion extension lower cover (A).

Fig 3: Cushion Extension Lower Cover With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

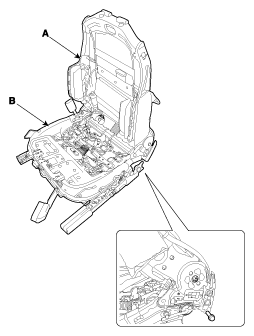

After loosening the mounting bolts, detach the front seat back frame assembly (A) from the front seat cushion frame assembly (B).

Fig 4: Front Seat Back Frame Assembly And Front Seat Cushion Frame Assembly With Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- For the seat equipped with side airbag, remove the side airbag from the seat frame assembly.
  (Refer to "SIDE AIRBAG (SAB) MODULE ")
- Before service, be fully aware of precautions and service procedure relevant to air bag.
(Refer to "SIDE AIRBAG (SAB) MODULE ")
