Home >> Hyundai >> 2015 >> Elantra Coupe GL, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - 1.8L >> Variable Charge Motion Actuator (VCMA) >> Components and Components Location >> Components

Components and Components Location: Components

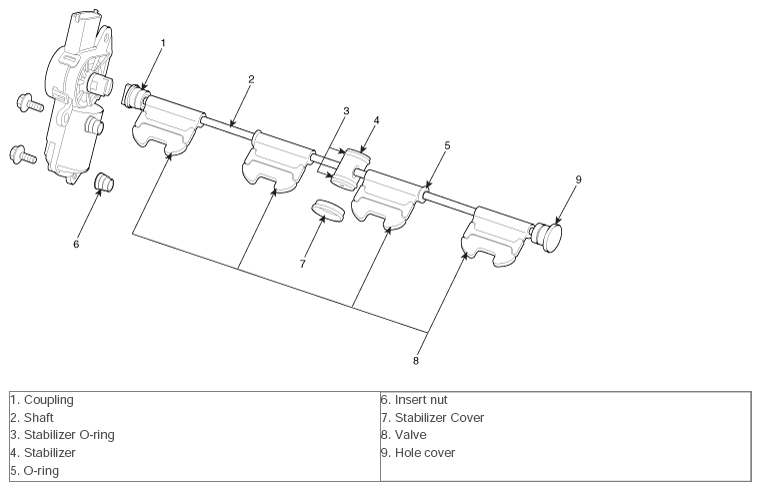

Fig 1: Variable Charge Motion Actuator (VCMA) Components

G10548961

Courtesy of HYUNDAI MOTOR AMERICA
