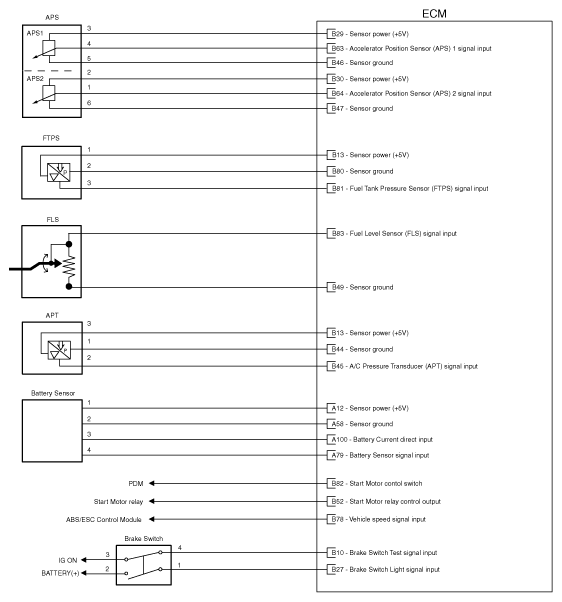

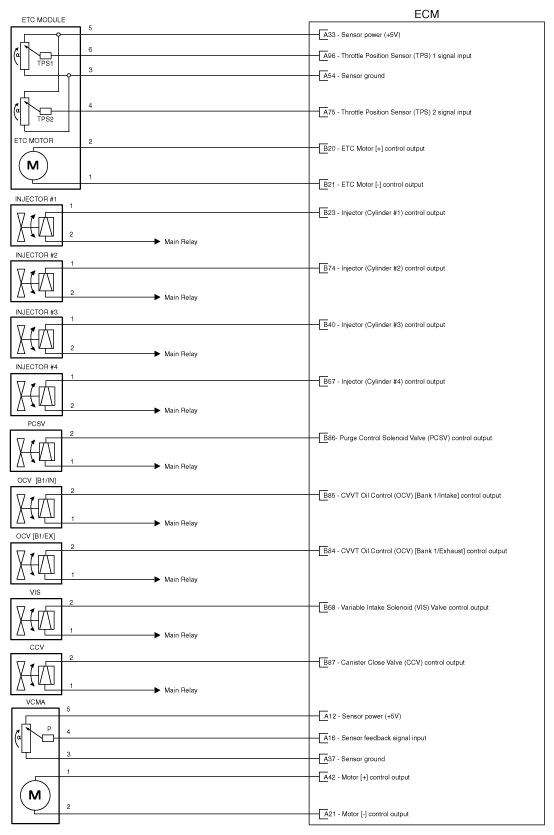

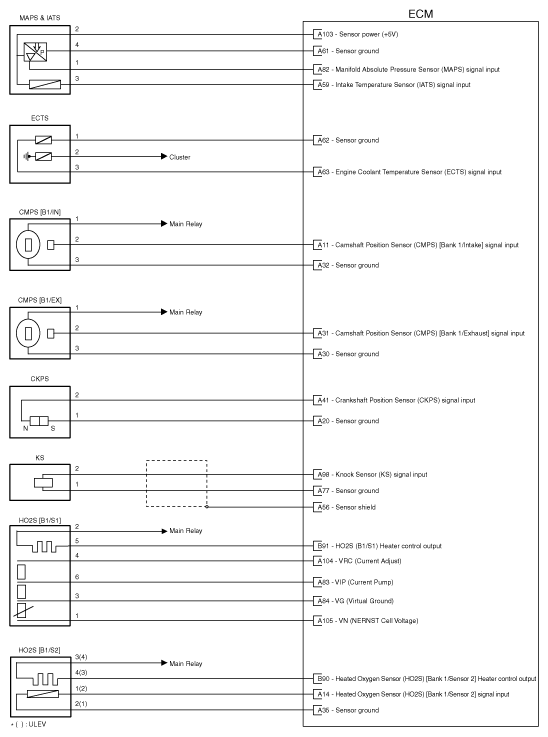

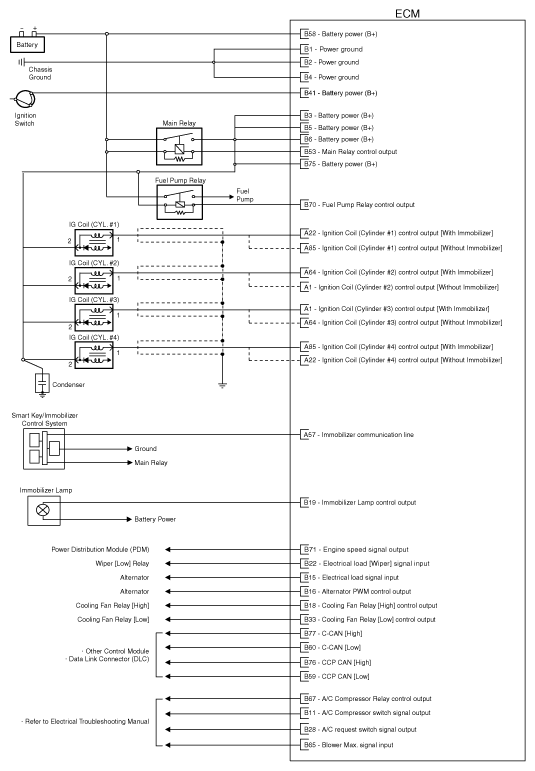

Home >> Hyundai >> 2015 >> Elantra Coupe GL, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - 1.8L >> Engine Control Module (ECM) >> Schematic Diagrams >> Circuit Diagram >> (A/T)
