Projected Dimensions

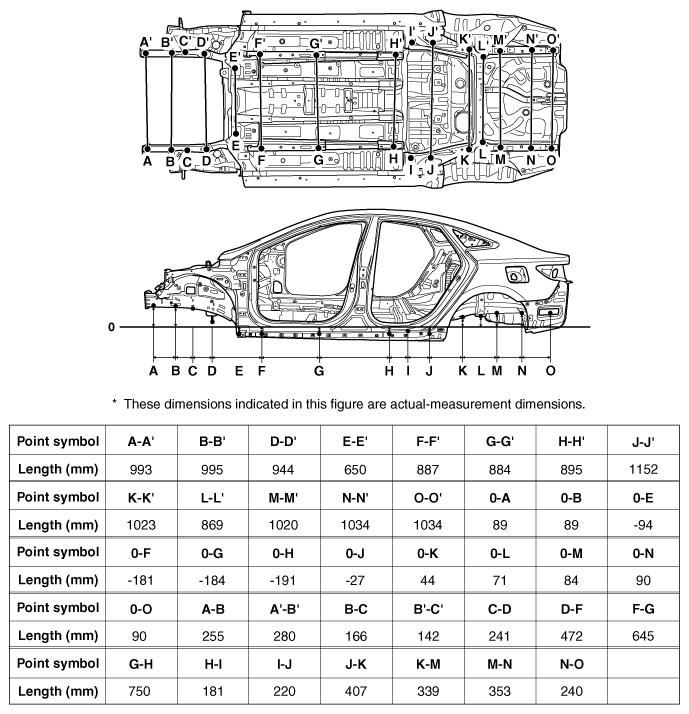

Fig 1: Under Body Dimensions
G10368295Courtesy of HYUNDAI MOTOR AMERICA

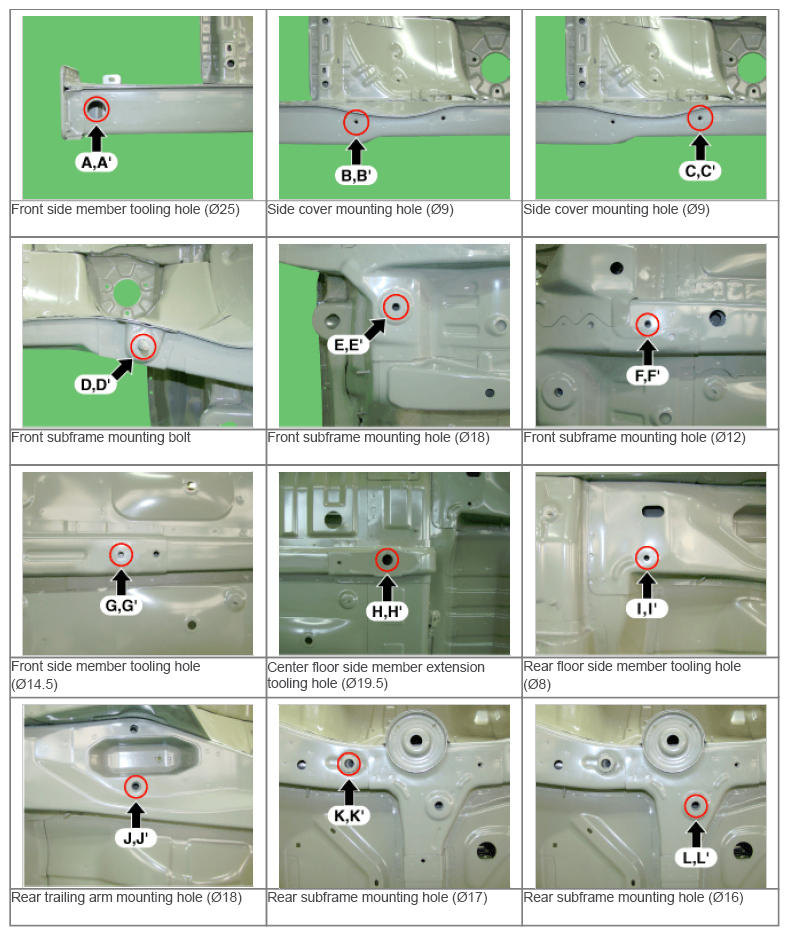

Fig 2: Side Cover And Front Subframe Mounting Bolts
G10368296Courtesy of HYUNDAI MOTOR AMERICA

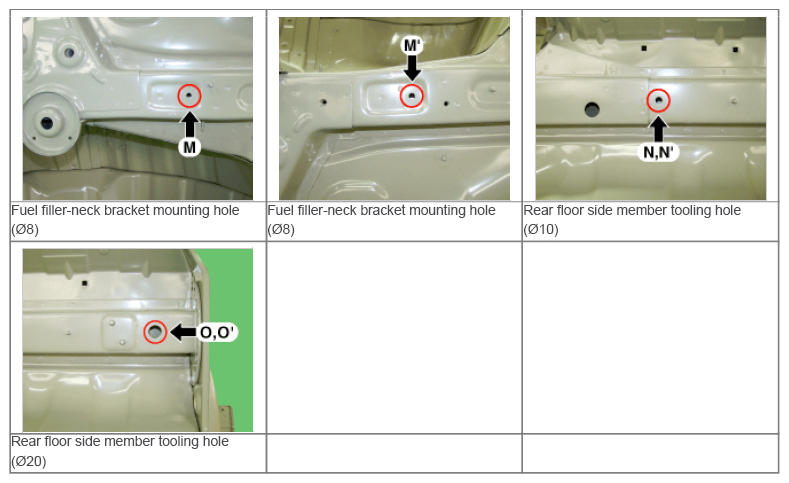

Fig 3: Rear Floor Side Member Tooling Hole
G10368297Courtesy of HYUNDAI MOTOR AMERICA
