Veloster Turbo, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Hydraulic System
>>
Components and Components Location
>>
Components Location
Components Location

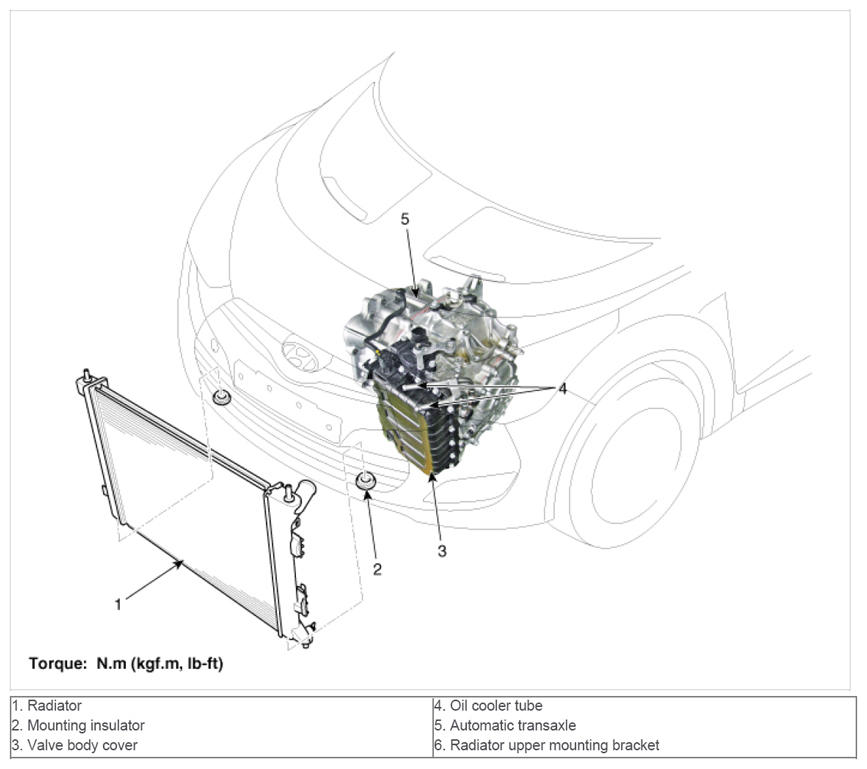

Fig 1: Automatic Transaxle System Components
Courtesy of HYUNDAI MOTOR AMERICA

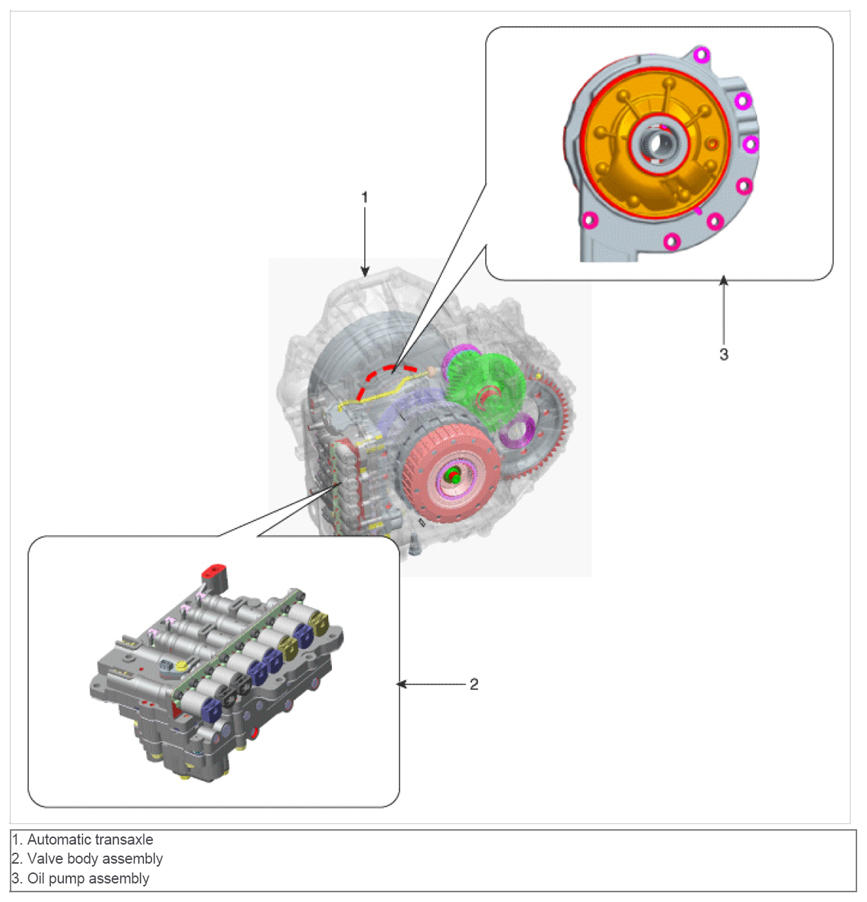

Fig 2: Valve Body & Oil Pump Locations
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
