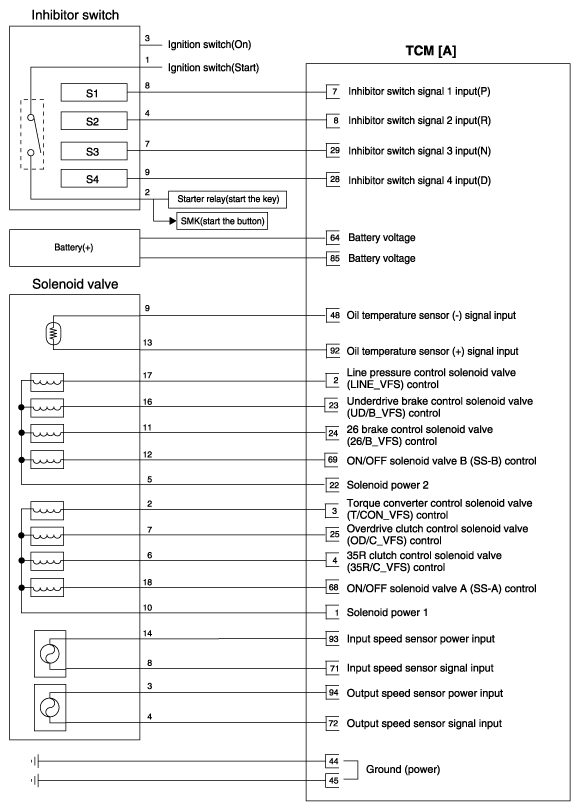

Home >> Hyundai >> 2014 >> Tucson SE, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 2.4L >> Transaxle Control Module (TCM) >> Schematic Diagrams >> Circuit Diagram
