Hyundai
>>
2014
>>
Tucson Limited, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Control System - 2.4L
>>
Input Speed Sensor
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform

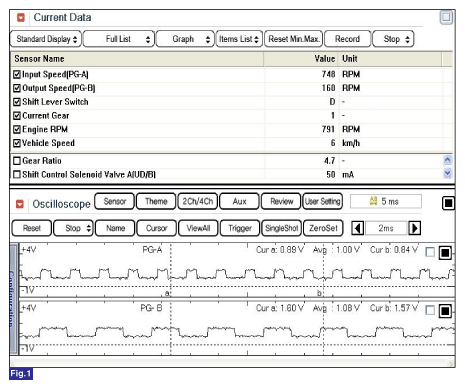

Fig 1: Display - Input/Output Speed Sensor At Low Speed
Courtesy of HYUNDAI MOTOR AMERICA

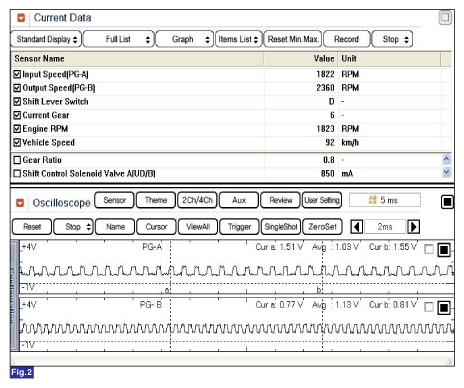

Fig 2: Display - Input/Output Speed Sensor At High Speed
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
