Automatic Transaxle Control System - 2.0L
>>
Transaxle Control Module (TCM)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

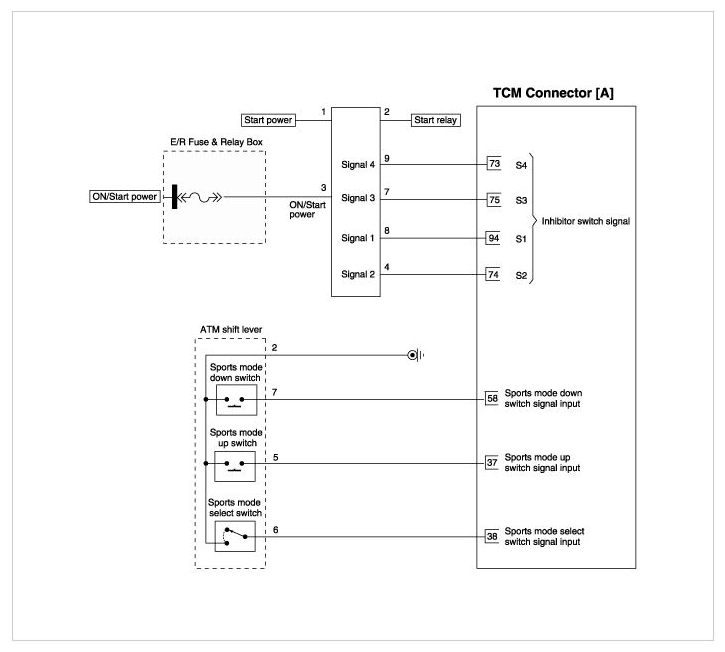

Fig 1: TCM Connector - Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

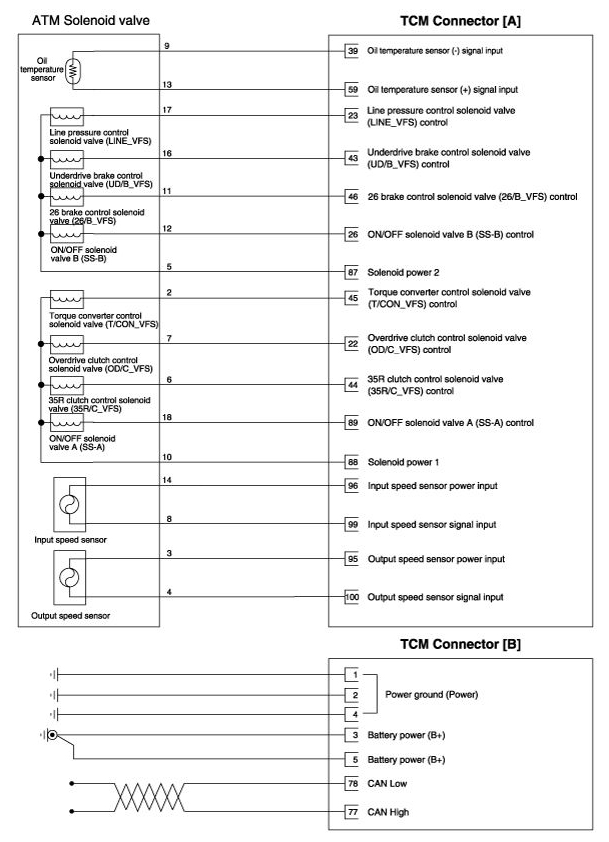

Fig 2: TCM Connector - Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
