FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

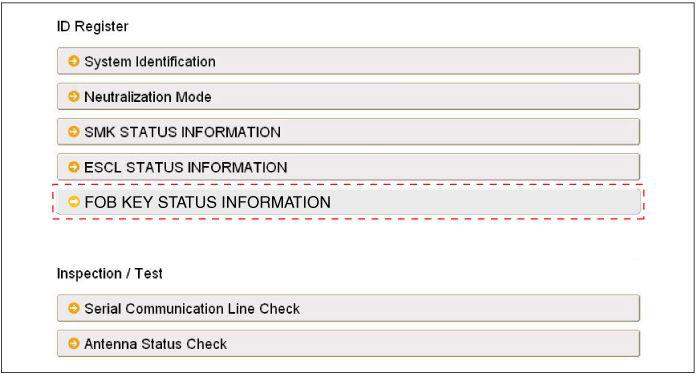

    Fig 1: Selecting FOB Key Status Information
    G00547323Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Display - FOB Key Status Information Screen
    G06875385Courtesy of HYUNDAI MOTOR CO.
